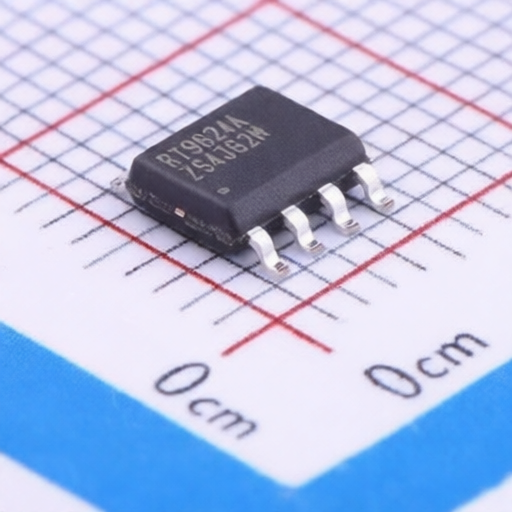

RICHTEK RT9624AZS
Manufacturer:
RICHTEK
Asian Brands
Mfr. Part #:
RT9624AZS
Package:
SOP-8
Customer #:
Key Attributes:
Single Phase Synchronous Rectified Buck MOSFET Driver
Description:
SOP-8 Gate Drivers RoHS
Datasheet:
RICHTEK RT9624AZS
Products Specifications
Manufacturer:
Package:
SOP-8
Input Logic Level - Low:
700mV~1.4V
Peak Output Current(Source):
-
Peak Output Current(Sink):
-
Quiescent Current(Iq):
120uA
Input Voltage (Vin):
4.5V~13.2V
Driven Configuration:
Half-Bridge
Operating Temperature:
-40℃~+125℃
Propagation Delay tpLH:
60ns;30ns
Propagation Delay tpHL:
22ns;8ns
Rise Time:
25ns;24ns
Features:
-
Fall Time:
12ns
Load Type:
MOSFET
Input Logic Level - High:
2.3V~3.2V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
RICHTEK
1195 Products
Richtek Technology Corporation is one of the world’s leading analog IC companies. The company consistently delivers inventive power management solutions that improve the performance of consumer electronics, computers, and communications equipment. Richtek adds value to end equipment by synthesizing technological innovation, uncompromised quality, and devotion to customer service. Founded in 1998, the Company is headquartered in Taiwan with additional offices in Asia, the U.S., and Europe.
