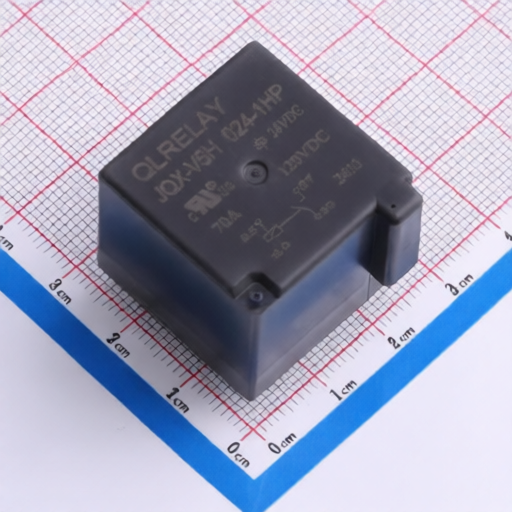

QLRELAY JQX-V5H 024-1HP
Manufacturer:
QLRELAY
Asian Brands
Mfr. Part #:
JQX-V5H 024-1HP
Package:
Through Hole,29.1x26.2mm
Customer #:
Description:
220V@DC 80A 24V 1 Set Normally Open: 1A (SPST NO) Through Hole,29.1x26.2mm Automotive Relays RoHS
Datasheet:
QLRELAY JQX-V5H 024-1HP
Products Specifications
Category:
Manufacturer:
Package:
Through Hole,29.1x26.2mm
Contact Resistance:
100mΩ
Coil Type:
-
Switching Voltage(Max):
220V@DC
Release Time:
10ms
Operate Time:
10ms
Coil Rated Power:
1.6W
Contact Material:
Silver Alloy
Switching Current(Max):
80A
Number of Pins:
-
Coil Resistance:
360Ω
Operating Temperature:
-40℃~+105℃
Coil Voltage:
24V
Contact Form:
1 Set Normally Open: 1A (SPST NO)
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 25 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536411090 |
| USHTS | 8536410030 |
| TARIC | 8536411090 |
| CAHTS | 8536410099 |
| BRHTS | 85364100 |
| INHTS | 85364100 |
| MXHTS | 8536.41.10 |
