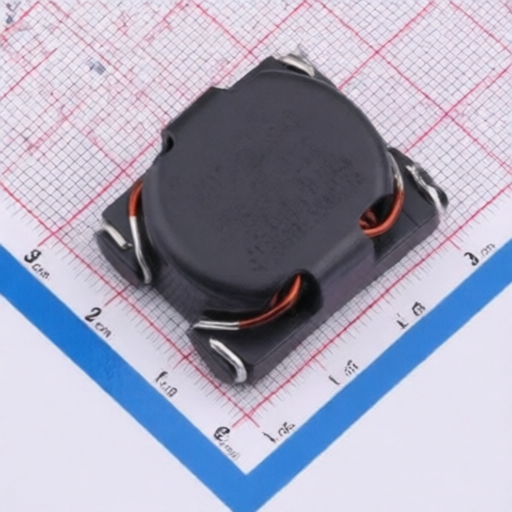

PULSE P0469NLT
Manufacturer:
PULSE
Mfr. Part #:
P0469NLT
Package:
SMD
Customer #:
Key Attributes:
CMC 630uH 11.6A 2LN 4.9kΩ SMD
Description:
630uH 2Line Common Mode Choke Surface Mount 4.9kΩ@4MHz 11.6A DCR 10mΩ
Datasheet:
PULSE P0469NLT
Products Specifications
Category:
Manufacturer:
Package:
SMD
Inductance @ Frequency:
630uH
Operating Temperature:
-40℃~+125℃
DC Resistance(DCR):
10mΩ
Number of Lines:
2
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 75 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8548900001 |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
PULSE
2490 Products
Pulse Electronics is one of the world's largest electronic component manufacturers and a leader in passive, magnetic-based components. Pulse's products are used in computers, networking and telecommunications, power conversion, defense, aerospace and consumer electronics. With both catalog parts and custom design capability, Pulse is a complete source for electronic OEMs and CEMs worldwide.
