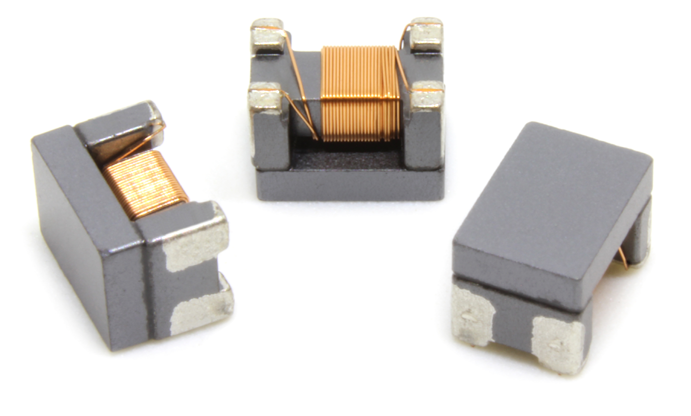

PULSE PE-1210AGC101STS
Manufacturer:
PULSE
Mfr. Part #:
PE-1210AGC101STS
Package:
SMD-4P,4.5x3.2mm
Customer #:
Description:
100uH 2Ω SMD-4P,4.5x3.2mm Common Mode Chokes RoHS
Datasheet:
PULSE PE-1210AGC101STS
Products Specifications
Category:
Manufacturer:
Package:
SMD-4P,4.5x3.2mm
Inductance @ Frequency:
100uH
Insulation Resistance(IR):
10MΩ
Operating Temperature:
-40℃~+125℃
DC Resistance(DCR):
2Ω
Voltage Rating - DC:
80V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8548900001 |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
PULSE
2490 Products
Pulse Electronics is one of the world's largest electronic component manufacturers and a leader in passive, magnetic-based components. Pulse's products are used in computers, networking and telecommunications, power conversion, defense, aerospace and consumer electronics. With both catalog parts and custom design capability, Pulse is a complete source for electronic OEMs and CEMs worldwide.
