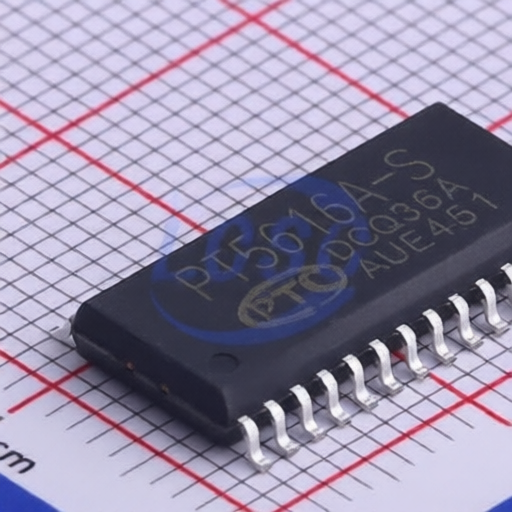

PTC PT5616A
Manufacturer:
PTC
Asian Brands
Mfr. Part #:
PT5616A
Package:
SOP-28-300mil
Customer #:
Key Attributes:
3-Phase 600V Gate Driver IC
Description:
11V~18V 200mA 400mA SOP-28-300mil Motor Drivers, Controllers RoHS
Datasheet:
PTC PT5616A
Products Specifications
Manufacturer:
Package:
SOP-28-300mil
Operating Temperature:
-40℃~+125℃
Driven Configuration:
Full-Bridge;Three Phase
Features:
Under Voltage Protection;Over Current Protection;Over Temperature Protection
Number of Channels:
6
Propagation Delay tpHL:
480ns
Voltage - Supply:
11V~18V
Load Type:
MOSFET;IGBT
Input Logic Level - High:
2.5V
Current - Output High(IOH):
200mA
Propagation Delay tpLH:
500ns
Input Logic Level - Low:
800mV
Quiescent Current:
1mA
Current - Output Low(IOL):
400mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 27 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
PTC
77 Products
PTC is a fabless IC design company headquartered in Taipei, Taiwan with R&D centers in Hsin-Chu (Taiwan) and the USA, subsidiaries in Shenzhen (China) and Chengdu (China), and a branch office in Japan. PTC has been listed on the Taiwan OTC (over-the-counter) market since 2001.
