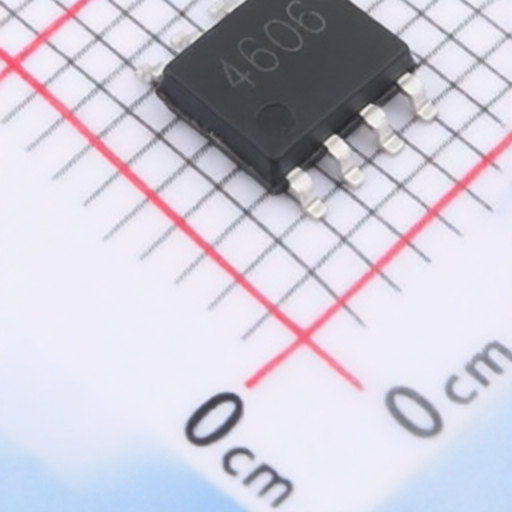

PJSEMI PJM08C30PA
Manufacturer:
PJSEMI
Asian Brands
Mfr. Part #:
PJM08C30PA
Package:
SOP-8
Customer #:
Key Attributes:
MOSFET N-CH+P-CH ARR 30V 8A SOP-8
Description:
N-Channel+P-Channel Array 30V 8A 2W Surface Mount SOP-8
Datasheet:
PJSEMI PJM08C30PA
Products Specifications
Manufacturer:
Package:
SOP-8
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
8A
Operating Temperature -:
-55℃~+150℃
RDS(on):
31mΩ@10V,5A
Gate Threshold Voltage (Vgs(th)):
2.4V
Type:
N-Channel + P-Channel
Reverse Transfer Capacitance (Crss@Vds):
54pF;65pF
Number:
1 N-Channel + 1 P-Channel
Input Capacitance(Ciss):
485.8pF;650pF
Output Capacitance(Coss):
65.2pF;105pF
Pd - Power Dissipation:
2W
Gate Charge(Qg):
12.6nC@10V;12.5nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 4000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
