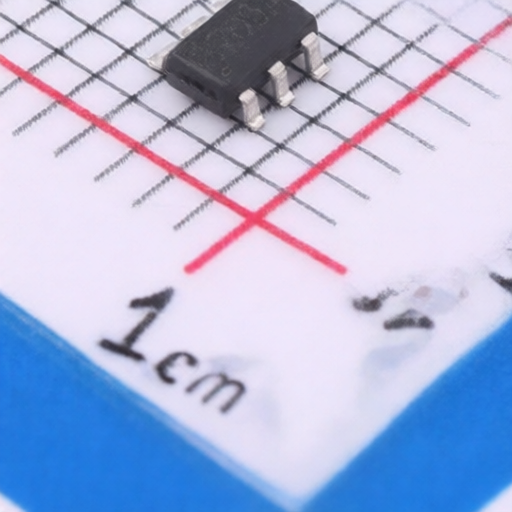

PJSEMI PJM8205JDNSG-S
Manufacturer:
PJSEMI
Asian Brands
Mfr. Part #:
PJM8205JDNSG-S
Package:
SOT-23-6
Customer #:
Key Attributes:
MOSFET 20V 4A SOT-23-6
Description:
20V 4A 1W Surface Mount SOT-23-6
Datasheet:
PJSEMI PJM8205JDNSG-S
Products Specifications
Manufacturer:
Package:
SOT-23-6
Configuration:
Common Drain
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
4A
Operating Temperature -:
-55℃~+150℃
RDS(on):
35mΩ@2.5V
Gate Threshold Voltage (Vgs(th)):
1V@250uA
Reverse Transfer Capacitance (Crss@Vds):
56pF
Number:
2 N-Channel
Pd - Power Dissipation:
1W
Input Capacitance(Ciss):
340pF
Gate Charge(Qg):
5.2nC
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
PJSEMI
533 Products
Dongguan Pingjingsemi Technology Co., Ltd.
(hereinafter referred to as "PJSEMI") was established in 2016 and is dedicated to the packaging and testing of IC and semiconductor discrete devices. The company has a wide range of products, including various field effect transistors (MOSFET), low dropout linear regulators (LDO), IC, diodes and triodes, etc. The products are widely used in power supplies, home appliances, lighting, security, instrumentation, communications, industrial control, automotive electronics and other fields. PJSEMI uses new automated production and testing equipment. While continuing to provide customers with high-quality and high-reliability products, it closely cooperates with MES&ERP to develop and actively promote the integration of industrialization and information technology. PJSEMI can not only provide customers with complete solutions and in-depth technical support, but also quickly respond to customers' diverse and customized needs.
