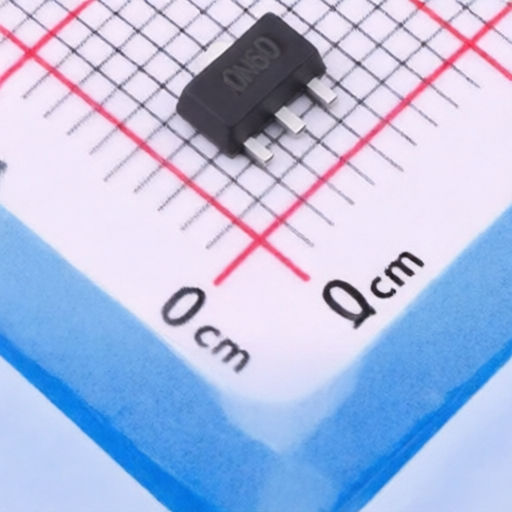

PJSEMI PJM10N60SQ
Manufacturer:
PJSEMI
Asian Brands
Mfr. Part #:
PJM10N60SQ
Package:
SOT-89
Customer #:
Key Attributes:
MOSFET N-CH 60V 10A SOT-89
Description:
N-Channel 60V 10A 1.35W Surface Mount SOT-89
Datasheet:
PJSEMI PJM10N60SQ
Products Specifications
Manufacturer:
Package:
SOT-89
Configuration:
-
Drain to Source Voltage:
60V
Current - Continuous Drain(Id):
10A
RDS(on):
30mΩ@10V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
2.5V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
59pF@30V
Number:
1 N-channel
Input Capacitance(Ciss):
973pF@30V
Pd - Power Dissipation:
1.35W
Gate Charge(Qg):
25nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
