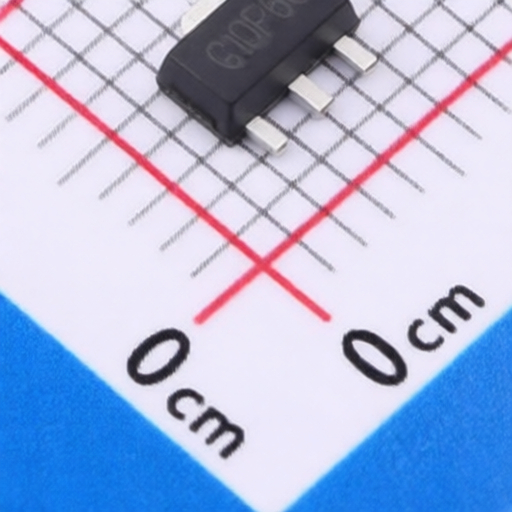

PJSEMI PJMG10P60SQ
Manufacturer:
PJSEMI
Asian Brands
Mfr. Part #:
PJMG10P60SQ
Package:
SOT-89
Customer #:
Key Attributes:
MOSFET P-CH 60V 10A SOT-89
Description:
P-Channel 60V 10A 1.5W Surface Mount SOT-89
Datasheet:
PJSEMI PJMG10P60SQ
Products Specifications
Manufacturer:
Package:
SOT-89
Configuration:
-
Drain to Source Voltage:
60V
Current - Continuous Drain(Id):
10A
RDS(on):
110mΩ@4.5V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
2.5V@250uA
Type:
P-Channel
Reverse Transfer Capacitance (Crss@Vds):
12pF
Number:
1 P-Channel
Output Capacitance(Coss):
135pF
Input Capacitance(Ciss):
515pF
Pd - Power Dissipation:
1.5W
Gate Charge(Qg):
9.86nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
