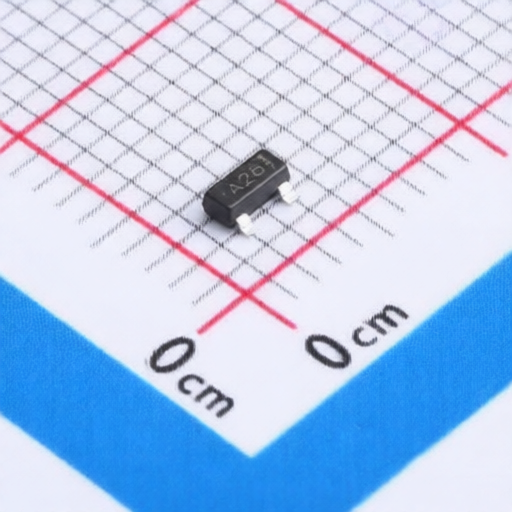

PANJIT PJA3428_R1_00001
Manufacturer:
PANJIT
Asian Brands
Mfr. Part #:
PJA3428_R1_00001
Package:
SOT-23
Customer #:
Description:
30V 300mA 1.2Ω@4.5V,300mA 1V 1 N-channel 500mW SOT-23 Single FETs, MOSFETs RoHS
Datasheet:
PANJIT PJA3428_R1_00001
Products Specifications
Manufacturer:
Package:
SOT-23
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
300mA
Operating Temperature -:
-55℃~+150℃@(Tj)
RDS(on):
1.2Ω@4.5V,300mA
Gate Threshold Voltage (Vgs(th)):
1V
Reverse Transfer Capacitance (Crss@Vds):
-
Number:
1 N-channel
Input Capacitance(Ciss):
45pF@10V
Pd - Power Dissipation:
500mW
Gate Charge(Qg):
900pC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
PANJIT
1418 Products
Innovation, Development, Responsibility, Sustainability
PANJIT is a public company founded in May 1986. We are a discrete manufacturer, a member of Electronic Industry Citizenship Coalition (EICC), and have ISO/TS-16949, ISO-9001, OHSAS-18001 certifications.
PANJIT is vertical integrated. We self-design and produce the wafer and manufacture our products. With insight observation and core technologies, PANJIT is able to continuously launch low profile products and accurate power rating devices which conforms to the customer needs.
PANJIT commits to serve customers with the best service, thus we have established sales offices worldwide. We have sites in North America, Germany, Korea and China which allows us to provide better and prompt service.
