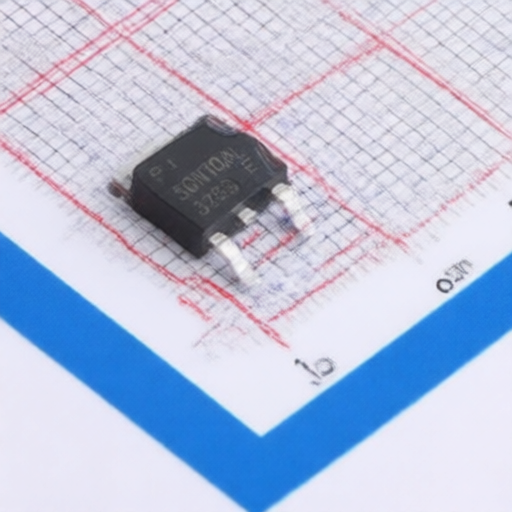

PANJIT PJD50N10AL-AU_L2_000A1
Manufacturer:
PANJIT
Asian Brands
Mfr. Part #:
PJD50N10AL-AU_L2_000A1
Package:
TO-252
Customer #:
Key Attributes:
MOSFET N-CH 100V 42A TO-252
Description:
N-Channel 100V 42A 83W Surface Mount TO-252
Datasheet:
PANJIT PJD50N10AL-AU_L2_000A1
Products Specifications
Manufacturer:
Package:
TO-252
Drain to Source Voltage:
100V
Current - Continuous Drain(Id):
42A
RDS(on):
20mΩ@10V;22mΩ@4.5V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
1.8V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
67pF
Number:
1 N-channel
Output Capacitance(Coss):
135pF
Input Capacitance(Ciss):
1.485nF
Pd - Power Dissipation:
83W
Gate Charge(Qg):
29nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
