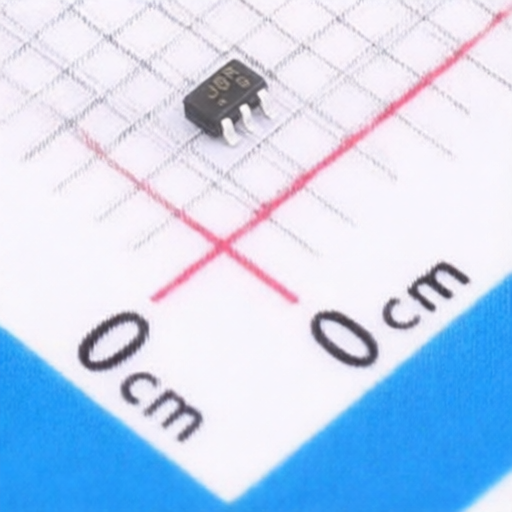

PANJIT BAV99S_R1_00001
Manufacturer:
PANJIT
Mfr. Part #:
BAV99S_R1_00001
Package:
SOT-363
Customer #:
Description:
Diode Array 2 Pair Series Connection 75V 150mA Surface Mount SOT-363
Datasheet:
PANJIT BAV99S_R1_00001
Products Specifications
Manufacturer:
Package:
SOT-363
Non-Repetitive Peak Forward Surge Current:
4A
Reverse Leakage Current (Ir):
2.5uA@75V
Reverse Recovery Time (trr):
4ns
Operating Junction Temperature Range:
-55℃~+150℃@(Tj)
Voltage - DC Reverse (Vr) (Max):
75V
Diode Configuration:
2 Pair Series Connection
Pd - Power Dissipation:
200mW
Voltage - Forward(Vf@If):
1.25V@150mA
Current - Rectified:
150mA
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541100000 |
| USHTS | 8541100040 |
| TARIC | 8541100000 |
| CAHTS | 8541100090 |
| BRHTS | 85411011 |
| INHTS | 85411000 |
| MXHTS | 8541.10.01 |
