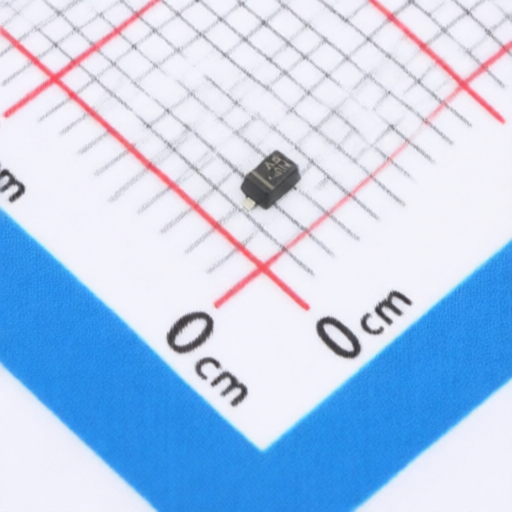

PANJIT BAV19WS_R1_00001
Manufacturer:
PANJIT
Asian Brands
Mfr. Part #:
BAV19WS_R1_00001
Package:
SOD-323
Customer #:
Key Attributes:
DIODE GP 100V 200mA SOD-323
Description:
Diode Independent 100V 200mA Surface Mount SOD-323
Datasheet:
PANJIT BAV19WS_R1_00001
Products Specifications
Manufacturer:
Package:
SOD-323
Non-Repetitive Peak Forward Surge Current:
4A
Reverse Leakage Current (Ir):
100nA@100V
Reverse Recovery Time (trr):
50ns
Operating Junction Temperature Range:
-55℃~+150℃@(Tj)
Voltage - DC Reverse (Vr) (Max):
100V
Diode Configuration:
Independent
Pd - Power Dissipation:
200mW
Voltage - Forward(Vf@If):
1V@100mA
Current - Rectified:
200mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 5000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541100000 |
| USHTS | 8541100040 |
| TARIC | 8541100000 |
| CAHTS | 8541100090 |
| BRHTS | 85411011 |
| INHTS | 85411000 |
| MXHTS | 8541.10.01 |
