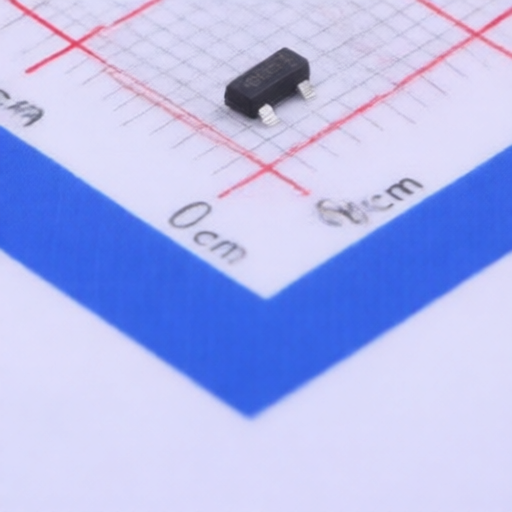

PANJIT MMBTA05-AU_R1_000A1
Manufacturer:
PANJIT
Asian Brands
Mfr. Part #:
MMBTA05-AU_R1_000A1
Package:
SOT-23
Customer #:
Key Attributes:
TRANS NPN 60V 500mA SOT-23
Description:
Bipolar (BJT) Transistor NPN 60V 500mA 100MHz 225mW Surface Mount SOT-23
Datasheet:
PANJIT MMBTA05-AU_R1_000A1
Products Specifications
Manufacturer:
Package:
SOT-23
Emitter-Base Voltage(Vebo):
4V
Current - Collector Cutoff:
100nA
Pd - Power Dissipation:
225mW
Transition frequency(fT):
100MHz
type:
NPN
Number:
1 NPN
Current - Collector(Ic):
500mA
Collector - Emitter Voltage VCEO:
60V
Operating Temperature:
-55℃~+150℃
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541210000 |
| USHTS | 8541210095 |
| TARIC | 8541210000 |
| CAHTS | 8541210000 |
| BRHTS | 85412199 |
| INHTS | 85412100 |
| MXHTS | 8541.21.01 |
