PANASONIC AYF524015

PANASONIC AYF524015

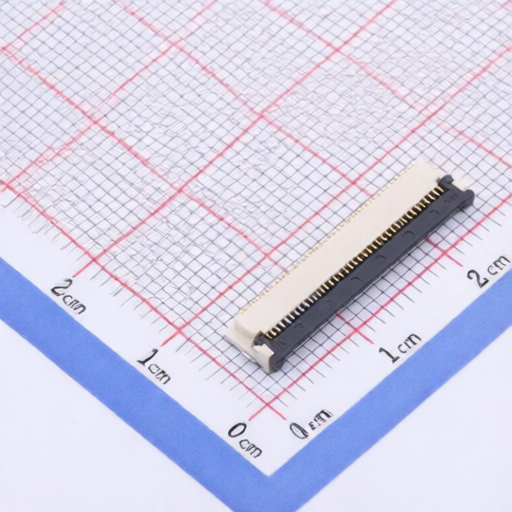

Name: PANASONIC AYF524015
Brand: PANASONIC

Manufacturer: PANASONIC

Mfr. Part #: AYF524015

Package: SMD,P=0.5mm,Surface Mount,Right Angle

Customer #:

Description: FFC/FPC Connector 40 Position 0.5mm Pitch Bottom Contact Surface Mount, Right Angle

Datasheet: PANASONIC AYF524015

Products Specifications

Category:

Connectors, Interconnects/FFC, FPC (Flat Flexible) Connectors/FFC, FPC (Flat Flexible) Connector Assemblies

Manufacturer:

PANASONIC

Package:

SMD,P=0.5mm,Surface Mount,Right Angle

Operating Temperature:

Locking Feature:

Hinged Lid

Number of Contacts:

40P

Pitch:

0.5mm

Contact Type:

Bottom Contact

Mounting Type:

Surface Mount, Right Angle

FFC, FCB Thickness:

0.3mm

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	2000
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	8536901100
USHTS	8536908585
TARIC	8536901000
CAHTS	8536900090
BRHTS	85369010
INHTS	85369010
MXHTS	8536.90.11
