OSEN OSD40N04T
Manufacturer:
OSEN
Asian Brands
Mfr. Part #:
OSD40N04T

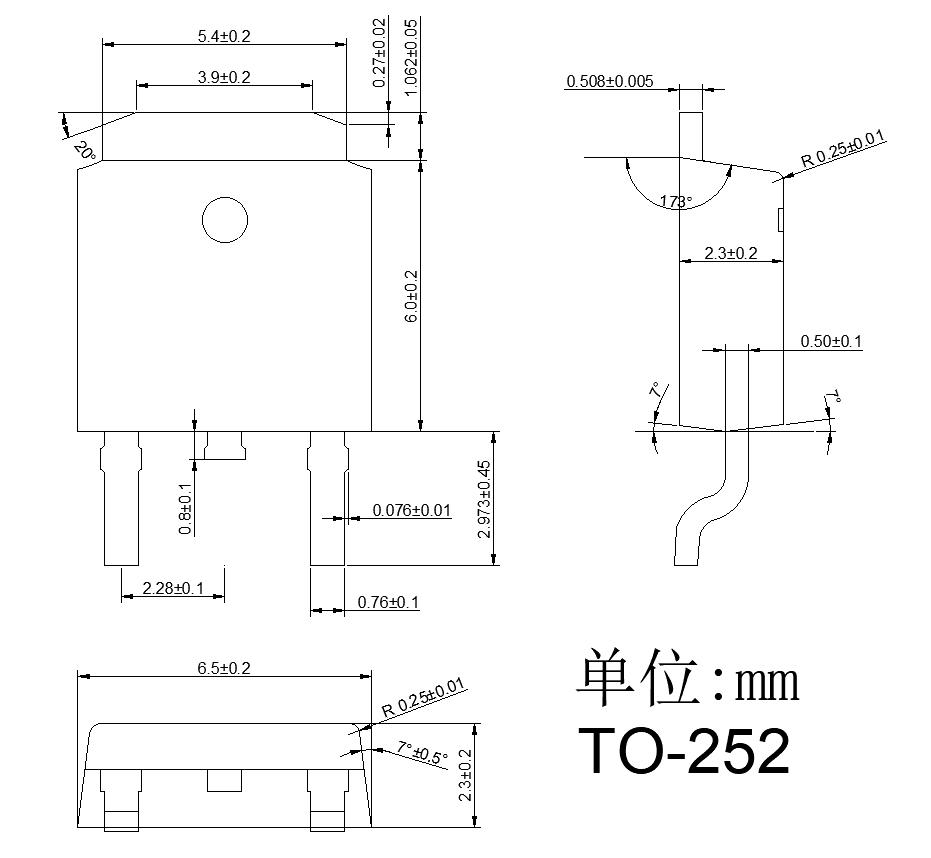

Package:
TO-252
Customer #:
Key Attributes:
MOSFET N-CH 40V 40A TO-252
Description:
40V 40A 10mΩ@10V 1.5V 65W TO-252 Single FETs, MOSFETs RoHS
Datasheet:
OSEN OSD40N04T
Products Specifications
Manufacturer:
Package:
TO-252
Drain to Source Voltage:
40V
Current - Continuous Drain(Id):
40A
RDS(on):
10mΩ@10V
Gate Threshold Voltage (Vgs(th)):
1.5V
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
80pF
Input Capacitance(Ciss):
1.5nF
Output Capacitance(Coss):
110pF
Pd - Power Dissipation:
65W
Gate Charge(Qg):
22.5nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
