OSEN OSH30N50
Manufacturer:
OSEN
Asian Brands
Mfr. Part #:
OSH30N50
Package:

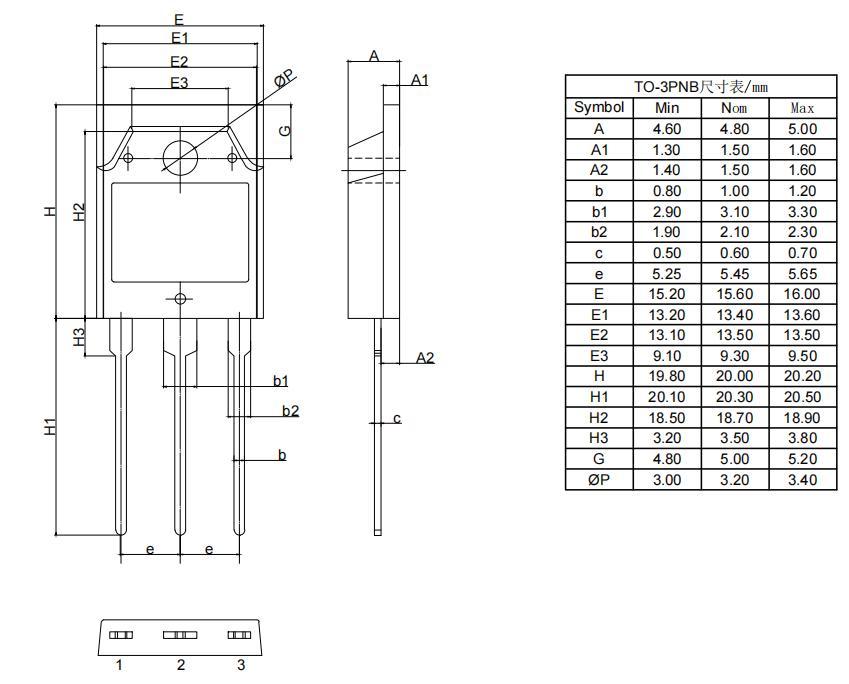

TO-3PNB
Customer #:
Key Attributes:
MOSFET N-CH 500V 30A TO-3PNB
Description:
500V 30A 165mΩ@10V 4V 330W TO-3PNB Single FETs, MOSFETs RoHS
Datasheet:
OSEN OSH30N50
Products Specifications
Manufacturer:
Package:
TO-3PNB
Drain to Source Voltage:
500V
Current - Continuous Drain(Id):
30A
RDS(on):
165mΩ@10V
Gate Threshold Voltage (Vgs(th)):
4V
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
50pF
Pd - Power Dissipation:
330W
Output Capacitance(Coss):
520pF
Input Capacitance(Ciss):
4.3nF
Gate Charge(Qg):
95nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
OSEN
513 Products
Guangdong OSEN Microelectronics Co., Ltd.
(hereinafter referred to as "OSEN") is a small and medium-sized high-tech private enterprise integrating R&D, production, sales and technical services, with the OSEN brand. Founded in 1999, the company mainly produces amplifier audio matching tubes, switching transistors, rectifier Schottky diodes and field effect tubes. The annual production capacity has exceeded 500 million pieces. These products are mainly used in amplifier audio, switching power supplies, electronic ballasts, welding machines, inverters, lighting and atomizing humidifiers. OSEN has obtained ISO9001 quality system, ROHS EU environmental protection standards and EU CE system certification, adheres to the development goals of quality and technology innovation, and strives to create high-quality products in amplifier audio tubes, switching transistors, rectifier Schottky diodes and field effect tubes.
