OSEN OSH65R038
Manufacturer:
OSEN
Asian Brands
Mfr. Part #:
OSH65R038
Package:

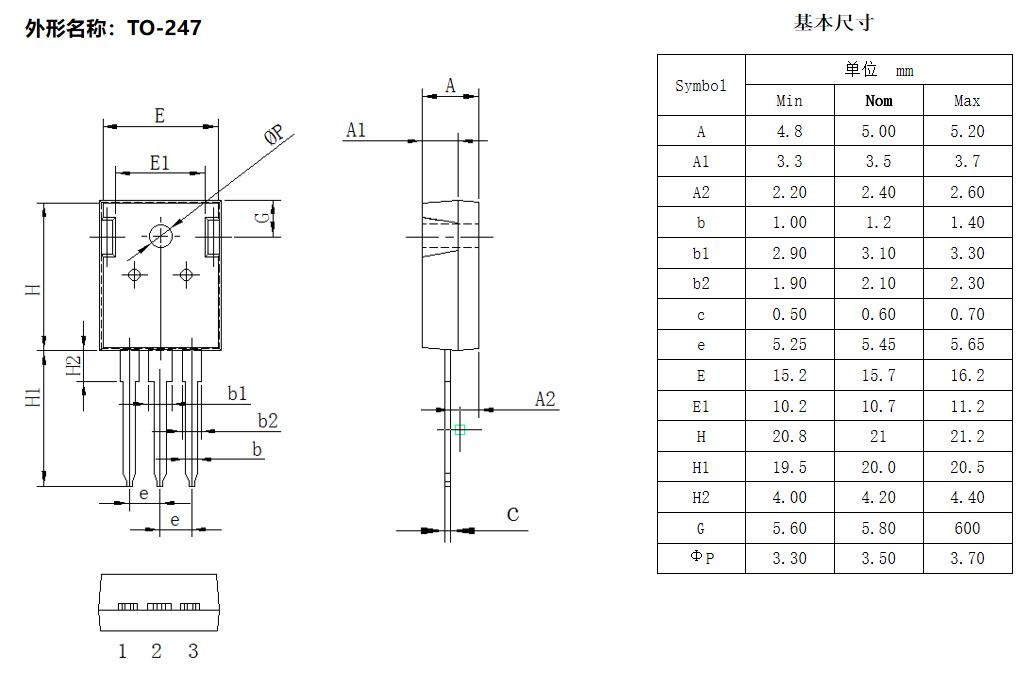

TO-247H
Customer #:
Key Attributes:
MOSFET N-CH 650V 68A TO-247H
Description:
650V 68A 33mΩ@10V 5V 1 N-channel 450W TO-247H Single FETs, MOSFETs RoHS
Datasheet:
OSEN OSH65R038
Products Specifications
Manufacturer:
Package:
TO-247H
Drain to Source Voltage:
650V
Current - Continuous Drain(Id):
68A
RDS(on):
33mΩ@10V
Gate Threshold Voltage (Vgs(th)):
5V
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
12pF
Number:
1 N-channel
Input Capacitance(Ciss):
3.9nF
Output Capacitance(Coss):
150pF
Pd - Power Dissipation:
450W
Gate Charge(Qg):
150nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
