Orient ORPC-815S-F

Orient ORPC-815S-F

Name: Orient ORPC-815S-F
Brand: Orient

Manufacturer: Orient Asian Brands

Mfr. Part #: ORPC-815S-F

Package: DIP-4

Customer #:

Description: 80mA 800mV@20mA,5mA 80V 6V DC DIP-4 Transistor, Photovoltaic Output Optoisolators RoHS

Datasheet: Orient ORPC-815S-F

Products Specifications

Category:

Isolators/Optocouplers, Optoisolators/Transistor, Photovoltaic Output Optoisolators

Manufacturer:

Orient

Package:

DIP-4

Output Current:

80mA

Vce Saturation(VCE(sat)):

800mV@20mA,5mA

Operating Temperature:

-55℃~+110℃

Load Voltage:

80V

Reverse Voltage:

Load Type:

Phototransistor

Current transfer ratio:

600%;7500%

Forward Current(If):

50mA

Input type:

Isolation Voltage(Vrms):

5kV

Pd - Power Dissipation:

200mW

Number of Channels:

Additional Information

Type	Details
Minimum	1
Multiple	1

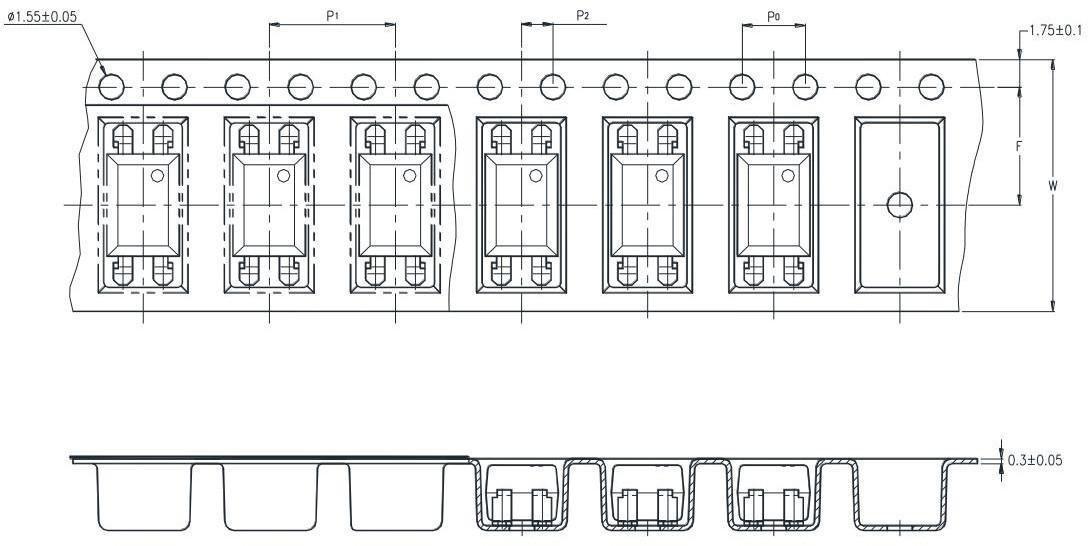

Standard Packaging	2000
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8541490000
USHTS	8541491010
TARIC	8541490000
CAHTS	8541490090
BRHTS	85414900
INHTS	85414900
MXHTS	8541.40.02

About Product

Get Best Price

Inquiry

Negotiate

Payment

Shipping

Orient

117 Products

Asian Brand

Orient, founded in 1998, is a national high-tech enterprise specializing in the research, development, and manufacturing of optoelectronic wafers and optocouplers. It possesses core chip technology and has a complete IDM industrial chain structure. The company mainly produces optocouplers, isolated drivers, and sensors.
