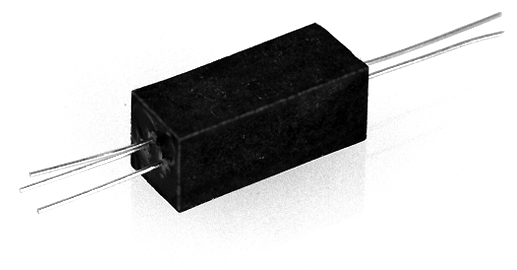

OPTEK OPI120

OPTEK OPI120

Name: OPTEK OPI120
Brand: OPTEK

Manufacturer: OPTEK

Mfr. Part #: OPI120

Package: Through Hole

Customer #:

Description: 50mA 500mV@30mA,1mA 25V 3V DC Through Hole Transistor, Photovoltaic Output Optoisolators RoHS

Datasheet: OPTEK OPI120

Products Specifications

Category:

Isolators/Optocouplers, Optoisolators/Transistor, Photovoltaic Output Optoisolators

Manufacturer:

OPTEK

Package:

Through Hole

Rise time:

2us

Fall time:

2us

Output Current:

50mA

Vce Saturation(VCE(sat)):

500mV@30mA,1mA

Operating Temperature:

-55℃~+100℃

Load Voltage:

25V

Reverse Voltage:

Current transfer ratio:

20%;70%

Forward Current(If):

150mA

Pd - Power Dissipation:

250mW

Number of Channels:

Load Type:

Phototransistor

Input type:

Isolation Voltage(Vrms):

15kV

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	100
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	8541490000
USHTS	8541491010
TARIC	8541490000
CAHTS	8541490090
BRHTS	85414900
INHTS	85414900
MXHTS	8541.40.02
