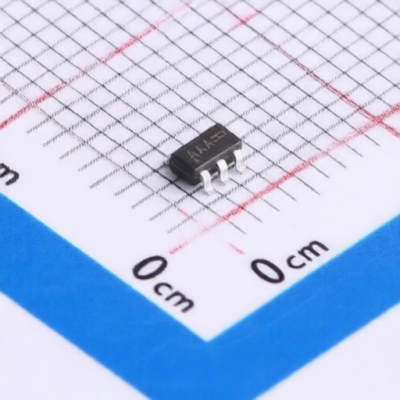

onsemi NCP51100ASNT1G
Manufacturer:
onsemi
Mfr. Part #:
NCP51100ASNT1G
Package:
SOT-23-5
Customer #:
Key Attributes:
Single 2 A High-Speed, Low-Side Gate Driver
Description:
SOT-23-5 Gate Drivers RoHS
Products Specifications
Manufacturer:
Package:
SOT-23-5
Operating Temperature:
-40℃~+125℃
Propagation Delay tpLH:
10ns
Propagation Delay tpHL:
14ns
Peak Output Current(Source):
3A
Rise Time:
14ns
Peak Output Current(Sink):
3A
Features:
Under Voltage Protection
Fall Time:
7ns
Quiescent Current(Iq):
550uA
Load Type:
MOSFET
Input Voltage (Vin):
11V~18V
Input Logic Level - High:
1.6V~2V
Driven Configuration:
Low Side
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
