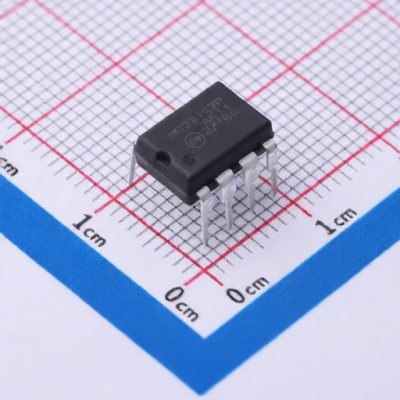

onsemi MC33153PG
Manufacturer:
onsemi
Mfr. Part #:
MC33153PG
Package:
PDIP-8
Customer #:
Key Attributes:
Single IGBT Gate Driver
Description:
PDIP-8 Gate Drivers RoHS
Products Specifications
Manufacturer:
Package:
PDIP-8
Operating Temperature:
-40℃~+105℃
Propagation Delay tpLH:
80ns
Propagation Delay tpHL:
120ns
Peak Output Current(Source):
1A
Rise Time:
17ns
Peak Output Current(Sink):
2A
Features:
Under Voltage Protection;Short Circuit Protection;Over Current Protection
Fall Time:
17ns
Load Type:
IGBT
Input Voltage (Vin):
10.4V~12.6V
Driven Configuration:
Half-Bridge
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
