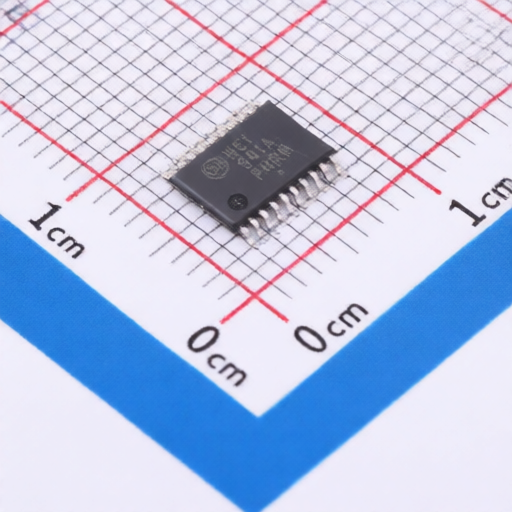

onsemi MC74HCT541ADTR2G
Manufacturer:
onsemi
Mfr. Part #:
MC74HCT541ADTR2G
Package:
TSSOP-20
Customer #:
Key Attributes:
Octal 3-State Non-Inverting Buffer/Line Driver/Line Receiver with LSTTL-Compatible Inputs
Description:
8 160uA 4.5V~5.5V 1 32ns@5.0V,50pF TSSOP-20 Buffers, Drivers, Receivers, Transceivers RoHS
Datasheet:
onsemi MC74HCT541ADTR2G
Products Specifications
Manufacturer:
Package:
TSSOP-20
Operating Temperature:
-55℃~+125℃
output type:
Tri-State
Input type:
-
Series:
74HCT
Number of Bits per Element:
8
Quiescent Current(Iq):
160uA
Channel Type:
Unidirectional
Voltage - Supply:
4.5V~5.5V
Current - Output High(IOH):
6mA
Number of Channels:
1
Propagation Delay:
32ns@5.0V,50pF
Current - Output Low(IOL):
6mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
onsemi
19033 Products
onsemi, founded in 1999, has become one of the world's leading semiconductor solution providers through acquisitions and organic growth. It primarily produces power management, analog signal processing, logic ICs, discrete components, and sensors.
