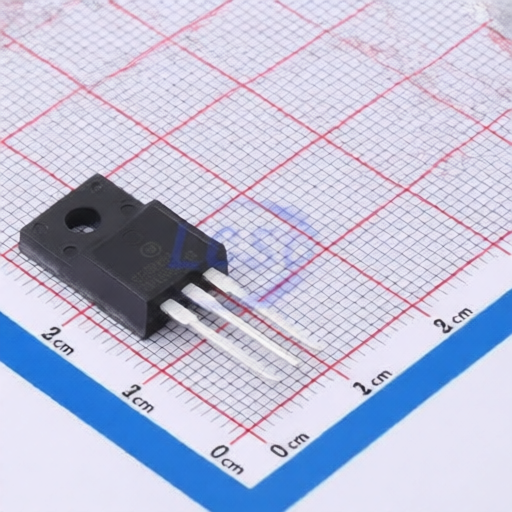

onsemi SGS23N60UFDTU
Manufacturer:
onsemi
Mfr. Part #:
SGS23N60UFDTU
Package:
TO-220F
Customer #:
Key Attributes:
Ultra-Fast IGBT
Description:
73W 600V TO-220F Single IGBTs RoHS
Datasheet:
onsemi SGS23N60UFDTU
Products Specifications
Manufacturer:
Package:
TO-220F
Pd - Power Dissipation:
73W
Td(off):
60ns
Td(on):
17ns
Collector-Emitter Breakdown Voltage (Vces):
600V
Reverse Transfer Capacitance (Cres):
25pF
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
3.5V@12mA
Gate Charge(Qg):
49nC@15V
Operating Temperature:
-55℃~+150℃
Reverse Recovery Time(trr):
42ns
Switching Energy(Eoff):
135uJ
Turn-On Energy (Eon):
115uJ
Input Capacitance(Cies):
720pF
Pulsed Current- Forward(Ifm):
92A
Output Capacitance(Coes):
100pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
