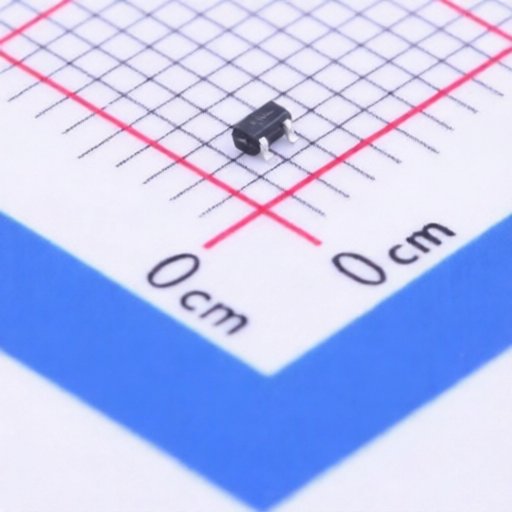

onsemi BAV70TT1G
Manufacturer:
onsemi
Mfr. Part #:
BAV70TT1G
Package:
SC-75
Customer #:
Key Attributes:
DIODE ARR GP 100V 200mA SC-75
Description:
Diode Array 1 Pair Common Cathode 100V 200mA Surface Mount SC-75
Datasheet:
onsemi BAV70TT1G
Products Specifications
Manufacturer:
Package:
SC-75
Non-Repetitive Peak Forward Surge Current:
500mA
Reverse Leakage Current (Ir):
1uA@100V
Reverse Recovery Time (trr):
6ns
Operating Junction Temperature Range:
-55℃~+150℃@(Tj)
Voltage - DC Reverse (Vr) (Max):
100V
Diode Configuration:
1 Pair Common Cathode
Voltage - Forward(Vf@If):
1.25V@150mA
Current - Rectified:
200mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541100000 |
| USHTS | 8541100040 |
| TARIC | 8541100000 |
| CAHTS | 8541100090 |
| BRHTS | 85411011 |
| INHTS | 85411000 |
| MXHTS | 8541.10.01 |
