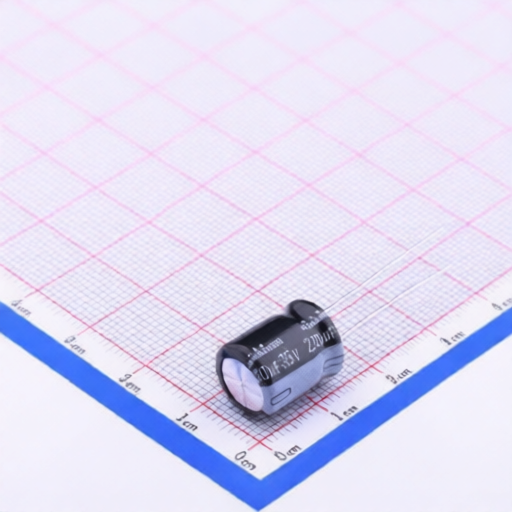

Nichicon UHE1V221MPD6
Manufacturer:
Nichicon
Mfr. Part #:
UHE1V221MPD6
Package:
Through Hole,D10xL12.5mm
Customer #:
Description:
220uF 35V Aluminum Electrolytic Capacitors Through Hole,D10xL12.5mm 7000hrs@105℃
Datasheet:
Nichicon UHE1V221MPD6
Products Specifications
Manufacturer:
Package:
Through Hole,D10xL12.5mm
Operating Temperature:
-40℃~+105℃
Lifetime:
7000hrs@105℃
Capacitance:
220uF
Height - Seated (Max):
12.5mm
Pin Spacing:
5mm
Voltage Rating:
35V
Diameter:
10mm
Equivalent Series Resistance(ESR):
80mΩ@100kHz
Tolerance:
±20%
Ripple Current:
865mA@100kHz
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8532229000 |
| USHTS | 8532230020 |
| TARIC | 8532220000 |
| CAHTS | 8532220000 |
| BRHTS | 85322200 |
| INHTS | 85322200 |
| MXHTS | 8532.22.99 |
