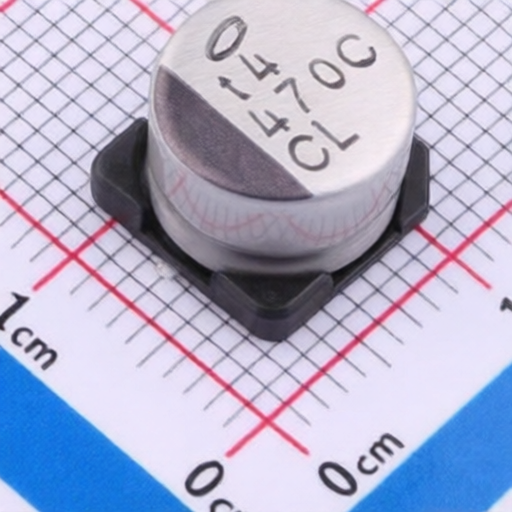

Nichicon UCL1C471MCL6GS
Manufacturer:
Nichicon
Mfr. Part #:
UCL1C471MCL6GS
Package:
SMD,D10xL7.7mm
Customer #:
Description:
470uF 16V ±20% 425mA@120Hz SMD,D10xL7.7mm Aluminum Electrolytic Capacitors RoHS
Datasheet:
Nichicon UCL1C471MCL6GS
Products Specifications
Manufacturer:
Package:
SMD,D10xL7.7mm
Operating Temperature:
-55℃~+105℃
Lifetime:
2000hrs@105℃
Capacitance:
470uF
Height - Seated (Max):
7.7mm
Voltage Rating:
16V
Diameter:
10mm
Equivalent Series Resistance(ESR):
-
Tolerance:
±20%
Ripple Current:
425mA@120Hz
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8532229000 |
| USHTS | 8532230020 |
| TARIC | 8532220000 |
| CAHTS | 8532220000 |
| BRHTS | 85322200 |
| INHTS | 85322200 |
| MXHTS | 8532.22.99 |
