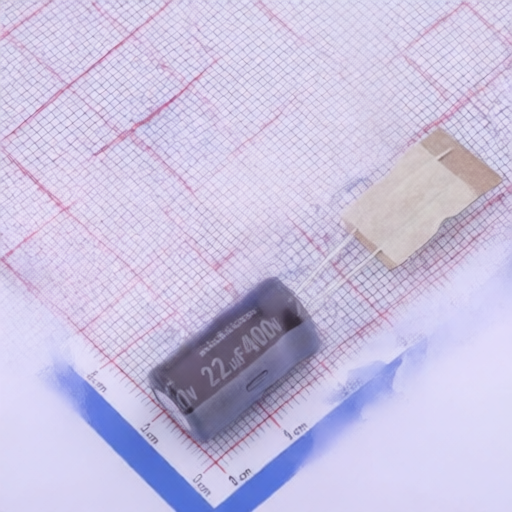

Nichicon UCS2G220MHD1TO
Manufacturer:
Nichicon
Mfr. Part #:
UCS2G220MHD1TO
Package:
Through Hole,D12.5xL20mm
Customer #:
Description:
22uF 400V 380mA@120Hz ±20% Through Hole,D12.5xL20mm Aluminum Electrolytic Capacitors RoHS
Datasheet:
Nichicon UCS2G220MHD1TO
Products Specifications
Manufacturer:
Package:
Through Hole,D12.5xL20mm
Operating Temperature:
-40℃~+105℃
Lifetime:
10000hrs@105℃
Capacitance:
22uF
Height - Seated (Max):
20mm
Pin Spacing:
5mm
Voltage Rating:
400V
Diameter:
12.5mm
Ripple Current:
380mA@120Hz
Tolerance:
±20%
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8532229000 |
| USHTS | 8532230020 |
| TARIC | 8532220000 |
| CAHTS | 8532220000 |
| BRHTS | 85322200 |
| INHTS | 85322200 |
| MXHTS | 8532.22.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Nichicon
1411 Products
Nichicon offers the widest selection of aluminum electrolytic capacitors in the industry and provides the broadest array of conductive polymer capacitors worldwide. For over 60 years, the company has striven to be a "valuable supplier for customers" by balancing advanced technology, strict quality control measures, and superior customer service while continuously researching and implementing innovative technologies that directly benefit customers. In the competitive marketplace of electronics, Nichicon's "zero-defect" philosophy ensures components can endure diverse applications. Nichicon takes pride in the variety of capacitors offered including surface mount, snap-in, through-hole, and screw terminal. Additionally, the company upholds the strictest environmental standards including manufacturing only RoHS and REACH compliant components.
Nichicon received the honored "Supplier Quality Excellence Award" from General Motors Company.
