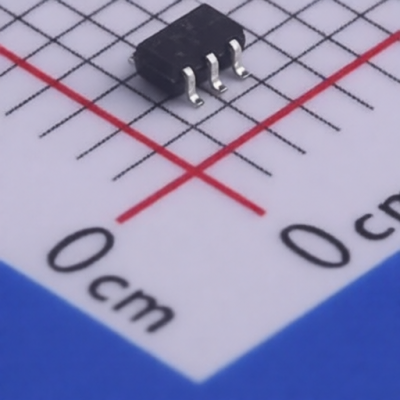

Nexperia 74HC2G14GW,125

Nexperia 74HC2G14GW,125

Name: Nexperia 74HC2G14GW,125
Brand: Nexperia

Manufacturer: Nexperia

Mfr. Part #: 74HC2G14GW,125

Package: SOT-363

Customer #:

Key Attributes: Dual inverting Schmitt trigger

Description: Schmitt trigger 1uA 21ns@6V,50pF 2V~6V SOT-363 Gates and Inverters RoHS

Products Specifications

Category:

Integrated Circuits (ICs)/Logic/Gates and Inverters

Manufacturer:

Nexperia

Package:

SOT-363

Operating Temperature:

-40℃~+125℃

Logic Family:

74HC Series

Input Type:

Schmitt trigger

Output Logic Level - Low:

260mV~330mV

Quiescent Current(Iq):

1uA

Propagation Delay:

21ns@6V,50pF

Input Logic Level -Low:

1.13V~2V;1.5V~2.6V

Voltage - Supply:

2V~6V

Number of Channels:

2;2

Current - Output High(IOH):

5.2mA

Output Logic Level - High:

4.4V~5.9V

Current - Output Low(IOL):

5.2mA

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	3000
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	8542399000
USHTS	8542390001
TARIC	8542399000
CAHTS	8542390000
BRHTS	85423999
INHTS	85423900
MXHTS	8542.39.99
