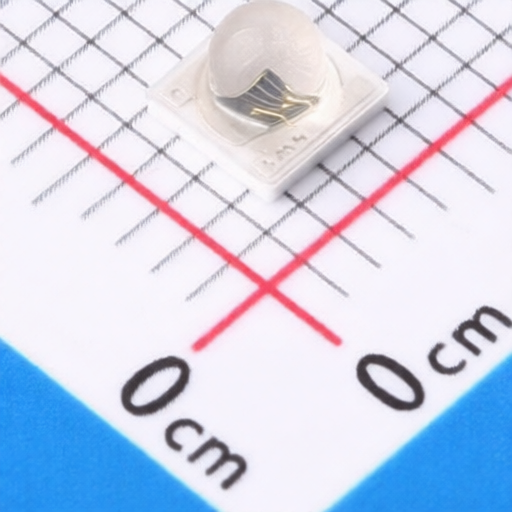

NEWOPTO XYC-HIRC19C60-35
Manufacturer:
NEWOPTO
Asian Brands
Mfr. Part #:
XYC-HIRC19C60-35
Package:
SMD3535-3P
Customer #:
Key Attributes:
EMITTER IR 850nm 1200mA SMD
Description:
Infrared (IR) Emitter 850nm 1.4V~2V 1200mA 60° Surface Mount 3535-3P
Datasheet:
NEWOPTO XYC-HIRC19C60-35
Products Specifications
Manufacturer:
Package:
SMD3535-3P
Voltage - DC Reverse(Vr):
5V
Current - DC Forward(If):
1.2A
Viewing Angle:
60°
Pd - Power Dissipation:
1.5W
Voltage - Forward(Vf):
1.4V~2V
Operating Temperature:
-30℃~+85℃
Wavelength:
850nm
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 800 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541490000 |
| USHTS | 8541491010 |
| TARIC | 8541490000 |
| CAHTS | 8541490090 |
| BRHTS | 85414900 |
| INHTS | 85414900 |
| MXHTS | 8541.40.02 |
