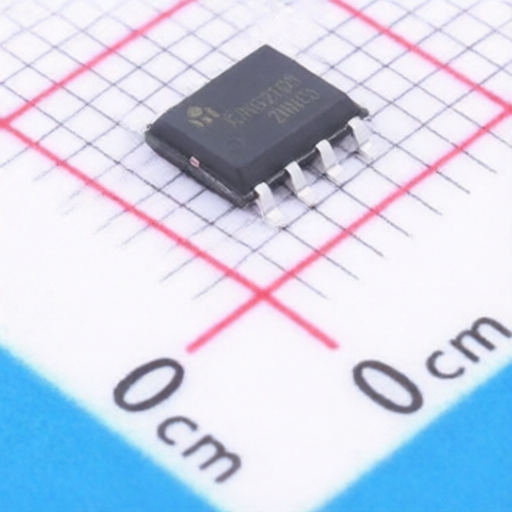

NCE XJNG2103
Manufacturer:
NCE
Asian Brands
Mfr. Part #:
XJNG2103
Package:
SOIC-8
Customer #:
Key Attributes:
Half Bridge Driver
Description:
SOIC-8 Gate Drivers RoHS
Datasheet:
NCE XJNG2103
Products Specifications
Manufacturer:
Package:
SOIC-8
Operating Temperature:
-40℃~+125℃
Propagation Delay tpLH:
150ns
Propagation Delay tpHL:
140ns
Peak Output Current(Source):
-
Peak Output Current(Sink):
-
Rise Time:
50ns
Features:
-
Fall Time:
40ns
Quiescent Current(Iq):
160uA
Load Type:
MOSFET
Input Voltage (Vin):
9V~20V
Driven Configuration:
Half-Bridge
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 4000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
NCE
720 Products
As the leading designer and supplier of high-power semiconductor device in China, NCE Power is committed to designing, manufacturing and selling various high-power semiconductor devices and power integrated devices, aiming to be the most valuable supplier of power devices and service for customers in the world.
NCE Power is the first to provide Super Junction MOSFETs (SJ-MOSFET) in China, covering voltage from 600V to 900V, is the professional supplier with various kinds of Trench MOSFETs covering voltage from -150V to 250V;1350V (25A , 20A , 15A) IGBT by trench field stop technology are excellent in performance and reliability, applied in high end field.
Taking advantage of our device technology and process integration experience, we closely cooperate with the first-class 8” wafer fab foundry, package plant and testing plant, which ensures high product quality, extremely stable electric parameters, continuous and stable supply.
