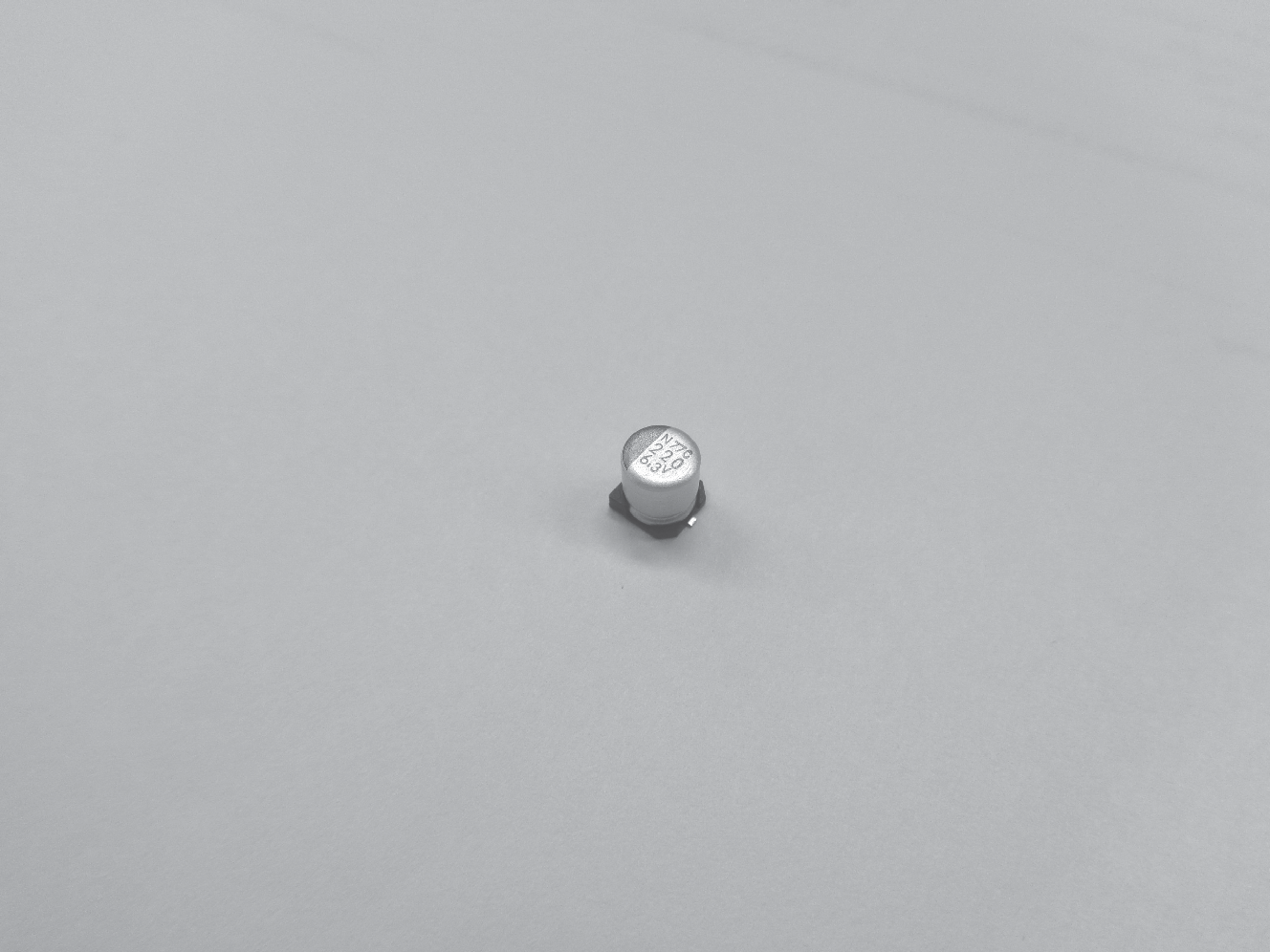

NCC APXN100ARA271MH70G
Manufacturer:
NCC
Mfr. Part #:
APXN100ARA271MH70G
Package:
SMD,D8xL7mm
Customer #:
Description:
10V 270uF ±20% 25mΩ 165mA@120Hz SMD,D8xL7mm Aluminum - Polymer Capacitors RoHS
Datasheet:
NCC APXN100ARA271MH70G
Products Specifications
Manufacturer:
Package:
SMD,D8xL7mm
Voltage Rating:
10V
Capacitance:
270uF
Lifetime:
5000hrs@105℃
Tolerance:
±20%
Pin Spacing:
-
Equivalent Series Resistance(ESR):
25mΩ
Height - Seated (Max):
7mm
Operating Temperature:
-55℃~+105℃
Ripple Current:
165mA@120Hz
Diameter:
8mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8532229000 |
| USHTS | 8532230020 |
| TARIC | 8532220000 |
| CAHTS | 8532220000 |
| BRHTS | 85322200 |
| INHTS | 85322200 |
| MXHTS | 8532.22.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
NCC
1223 Products
United Chemi-Con, a wholly owned subsidiary of Nippon Chemi-Con, was established in the United States in 1970. The company is the largest manufacturer and supplier of aluminum electrolytic capacitors in North America, with more than 8,000 unique products available.
