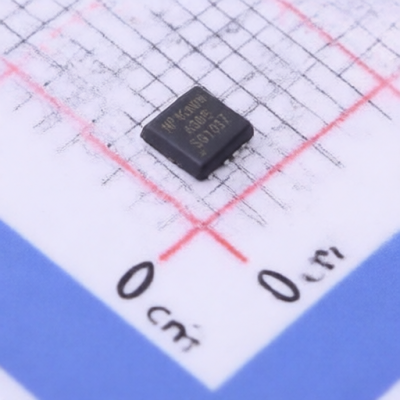

NATLINEAR NP45N03QR
Manufacturer:
NATLINEAR
Asian Brands
Mfr. Part #:
NP45N03QR
Package:
DFN3x3-8L
Customer #:
Key Attributes:
MOSFET N-CH 30V 45A DFN3x3-8L
Description:
N-Channel 30V 45A 28W Surface Mount DFN3x3-8L
Products Specifications
Manufacturer:
Package:
DFN3x3-8L
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
45A
Operating Temperature -:
-55℃~+150℃
RDS(on):
7mΩ@10V
Gate Threshold Voltage (Vgs(th)):
2.5V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
131pF
Number:
1 N-channel
Output Capacitance(Coss):
163pF
Input Capacitance(Ciss):
1.317nF
Pd - Power Dissipation:
28W
Gate Charge(Qg):
12.6nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 5000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
NATLINEAR
200 Products
NATLINEAR was founded in 2004 and is located in Zhangjiang, Shanghai. The company specializes in the research and development, as well as the manufacturing of mixed-signal chips. Adopting a "Fabless+" business model, NATLINEAR aims to enhance its overall competitiveness in terms of product, quality, cost, delivery, and service. The primary focus is on the production of power management chips.
