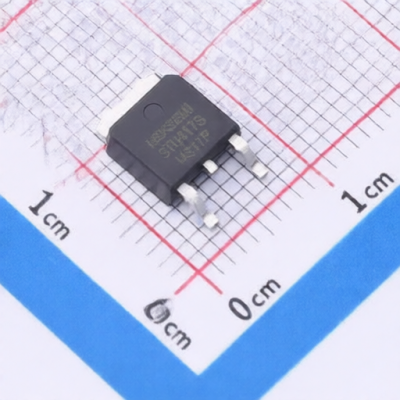

MSKSEMI STU417S
Manufacturer:
MSKSEMI
Asian Brands
Mfr. Part #:
STU417S
Package:
TO-252
Customer #:
Key Attributes:
MOSFET P-CH 40V 50A TO-252
Description:
P-Channel 40V 50A 55W Surface Mount TO-252
Products Specifications
Manufacturer:
Package:
TO-252
Drain to Source Voltage:
40V
Current - Continuous Drain(Id):
50A
Operating Temperature -:
-55℃~+150℃
RDS(on):
10.5mΩ@10V;14.2mΩ@4.5V
Gate Threshold Voltage (Vgs(th)):
1.6V@250uA
Type:
P-Channel
Reverse Transfer Capacitance (Crss@Vds):
150pF@20V
Number:
1 P-Channel
Pd - Power Dissipation:
55W
Input Capacitance(Ciss):
2.05nF@20V
Gate Charge(Qg):
28nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
