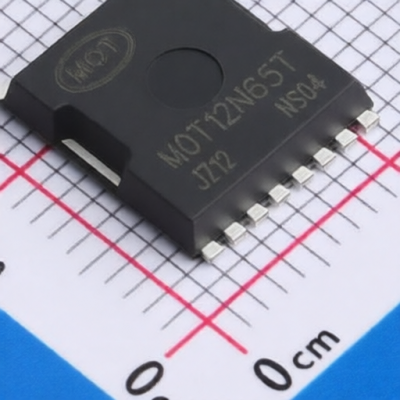

MOT MOT12N65T
Manufacturer:
MOT
Asian Brands
Mfr. Part #:
MOT12N65T
Package:
TOLL-8
Customer #:
Key Attributes:
MOSFET N-CH 650V 12A TOLL-8
Description:
N-Channel 650V 12A 208W Surface Mount TOLL-8
Products Specifications
Manufacturer:
Package:
TOLL-8
Drain to Source Voltage:
650V
Current - Continuous Drain(Id):
12A
Operating Temperature -:
-55℃~+150℃
RDS(on):
620mΩ@10V
Gate Threshold Voltage (Vgs(th)):
4V@250uA
Reverse Transfer Capacitance (Crss@Vds):
15pF
Number:
1 N-channel
Output Capacitance(Coss):
158pF
Pd - Power Dissipation:
208W
Input Capacitance(Ciss):
2.1nF
Gate Charge(Qg):
45nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
