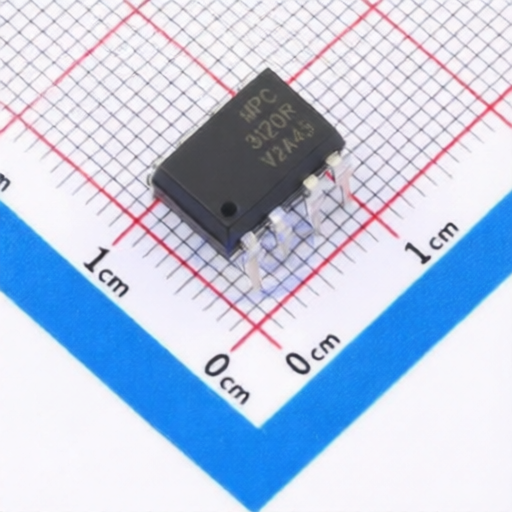

MIRACLE POWER MPC3120R-GV
Manufacturer:
MIRACLE POWER
Asian Brands
Mfr. Part #:
MPC3120R-GV
Package:
DIP-8
Customer #:
Key Attributes:
DIP8, DC Input, 2.5A, Gate Driver Photo Coupler
Description:
2.5A 5V 15V~30V 13ns 13ns 1.38V DIP-8 Isolators - Gate Drivers RoHS
Datasheet:
MIRACLE POWER MPC3120R-GV
Products Specifications
Category:
Manufacturer:
Package:
DIP-8
Power Dissipation:
295mW
Output Current:
2.5A
Operating Temperature:
-40℃~+100℃
Isolation voltage(Vrms):
5kV
Propagation Delay(tpd):
83ns;103ns
Reverse Voltage:
5V
Load Type:
IGBT;MOSFET
Voltage - Supply:
15V~30V
Rise Time:
13ns
Fall Time:
13ns
Voltage - Forward(Vf):
1.38V
CMTI(kV/us):
20kV/us
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 45 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | - |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
