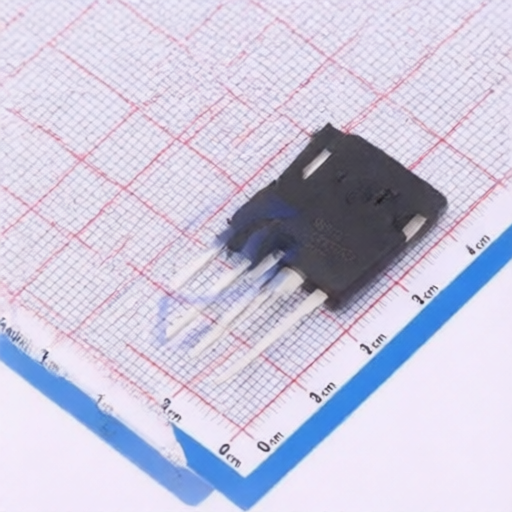

MIRACLE POWER MIQ75T065DFS
Manufacturer:
MIRACLE POWER
Asian Brands
Mfr. Part #:
MIQ75T065DFS
Package:
TO-247
Customer #:
Key Attributes:
Silicon Trench FS IGBT
Description:
520W 650V TO-247 Single IGBTs RoHS
Datasheet:
MIRACLE POWER MIQ75T065DFS
Products Specifications
Manufacturer:
Package:
TO-247
Td(off):
82ns
Pd - Power Dissipation:
520W
Td(on):
25ns
Collector-Emitter Breakdown Voltage (Vces):
650V
Reverse Transfer Capacitance (Cres):
20pF
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
4V@250uA
Gate Charge(Qg):
273nC@15V
Operating Temperature:
-40℃~+150℃
Reverse Recovery Time(trr):
156ns
Switching Energy(Eoff):
1.03mJ
Turn-On Energy (Eon):
2.86mJ
Input Capacitance(Cies):
4.472nF
Pulsed Current- Forward(Ifm):
300A
Output Capacitance(Coes):
171pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
