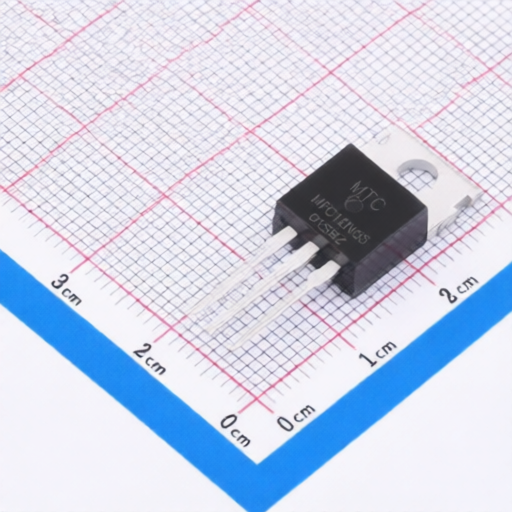

MIRACLE POWER MPC16N65
Manufacturer:
MIRACLE POWER
Asian Brands
Mfr. Part #:
MPC16N65
Package:
TO-220
Customer #:
Key Attributes:
MOSFET N-CH 650V 16A TO-220
Description:
N-Channel 650V 16A 190W Through Hole TO-220
Datasheet:
MIRACLE POWER MPC16N65
Products Specifications
Manufacturer:
Package:
TO-220
Drain to Source Voltage:
650V
Current - Continuous Drain(Id):
16A
Operating Temperature -:
-55℃~+150℃
RDS(on):
550mΩ@10V,8.0A
Gate Threshold Voltage (Vgs(th)):
4V@250uA
Type:
-
Reverse Transfer Capacitance (Crss@Vds):
18pF
Number:
1 N-channel
Input Capacitance(Ciss):
2.43nF
Output Capacitance(Coss):
215pF
Pd - Power Dissipation:
190W
Gate Charge(Qg):
53nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
