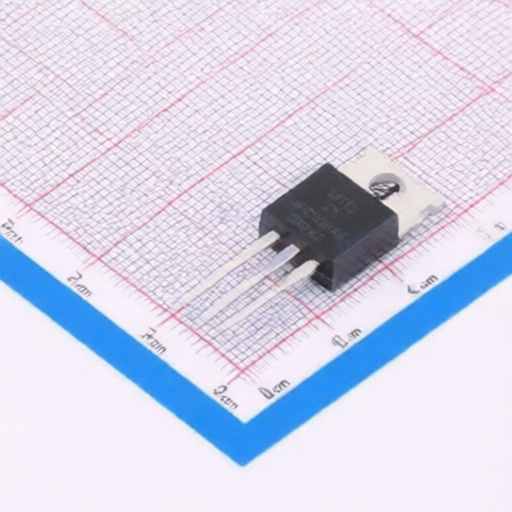

MIRACLE POWER MPC10N65
Manufacturer:
MIRACLE POWER
Asian Brands
Mfr. Part #:
MPC10N65
Package:
TO-220
Customer #:
Key Attributes:
MOSFET 650V 10A TO-220
Description:
650V 10A 130W Through Hole TO-220
Datasheet:
MIRACLE POWER MPC10N65
Products Specifications
Manufacturer:
Package:
TO-220
Drain to Source Voltage:
650V
Current - Continuous Drain(Id):
10A
Operating Temperature -:
-55℃~+150℃
RDS(on):
950mΩ@10V
Gate Threshold Voltage (Vgs(th)):
4V@250uA
Type:
-
Reverse Transfer Capacitance (Crss@Vds):
6.6pF
Number:
-
Input Capacitance(Ciss):
1.595nF
Output Capacitance(Coss):
134pF
Pd - Power Dissipation:
130W
Gate Charge(Qg):
31.9nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
