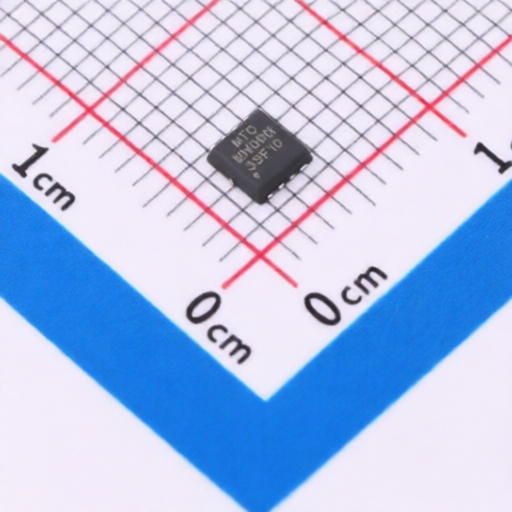

MIRACLE POWER MD4001X
Manufacturer:
MIRACLE POWER
Asian Brands
Mfr. Part #:
MD4001X
Package:
PDFN-8(3x3)
Customer #:
Key Attributes:
MOSFET N-CH+P-CH ARR 40V 20A PDFN-8(3x3)
Description:
N-Channel+P-Channel Array 40V 20A 16W Surface Mount PDFN-8(3x3)
Datasheet:
MIRACLE POWER MD4001X
Products Specifications
Manufacturer:
Package:
PDFN-8(3x3)
Drain to Source Voltage:
40V
Current - Continuous Drain(Id):
20A
RDS(on):
50mΩ@10V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
2.5V@250uA
Type:
N-Channel + P-Channel
Reverse Transfer Capacitance (Crss@Vds):
56pF
Number:
1 N-Channel + 1 P-Channel
Output Capacitance(Coss):
87pF
Pd - Power Dissipation:
16W
Input Capacitance(Ciss):
785pF
Gate Charge(Qg):
18nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 5000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
