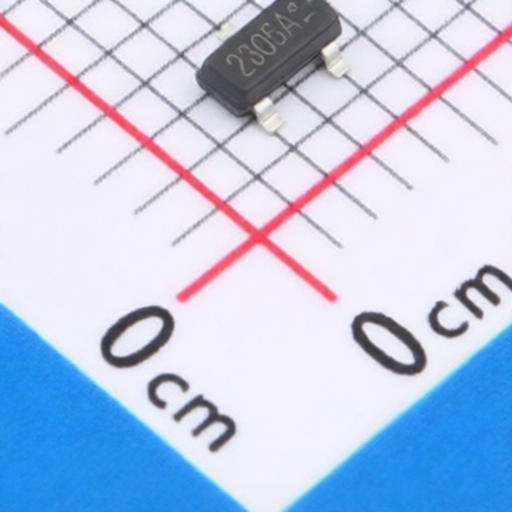

MIRACLE POWER MU2305T
Manufacturer:
MIRACLE POWER
Asian Brands
Mfr. Part #:
MU2305T
Package:
SOT23
Customer #:
Key Attributes:
MOSFET P-CH 20V 4.1A SOT23
Description:
P-Channel 20V 4.1A 1W Surface Mount SOT23
Datasheet:
MIRACLE POWER MU2305T
Products Specifications
Manufacturer:
Package:
SOT23
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
4.1A
Operating Temperature -:
-55℃~+150℃
RDS(on):
53mΩ@2.5V
Gate Threshold Voltage (Vgs(th)):
1V@250uA
Type:
P-Channel
Reverse Transfer Capacitance (Crss@Vds):
85pF
Number:
1 P-Channel
Output Capacitance(Coss):
132pF
Pd - Power Dissipation:
1W
Input Capacitance(Ciss):
830pF
Gate Charge(Qg):
6.5nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
