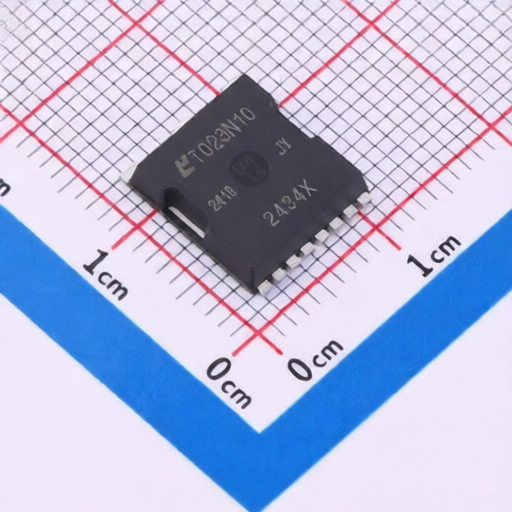

Minos MPT023N10-T
Manufacturer:
Minos
Asian Brands
Mfr. Part #:
MPT023N10-T
Package:
TOLL-8L
Customer #:
Key Attributes:
MOSFET N-CH 100V 360A TOLL-8L
Description:
N-Channel 100V 360A 416.6W Surface Mount TOLL-8L
Datasheet:
Minos MPT023N10-T
Products Specifications
Manufacturer:
Package:
TOLL-8L
Drain to Source Voltage:
100V
Current - Continuous Drain(Id):
360A
RDS(on):
1.8mΩ@10V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
1.8V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
328pF
Number:
1 N-channel
Output Capacitance(Coss):
1.715nF
Input Capacitance(Ciss):
11.26nF
Pd - Power Dissipation:
416.6W
Gate Charge(Qg):
224nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1200 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
