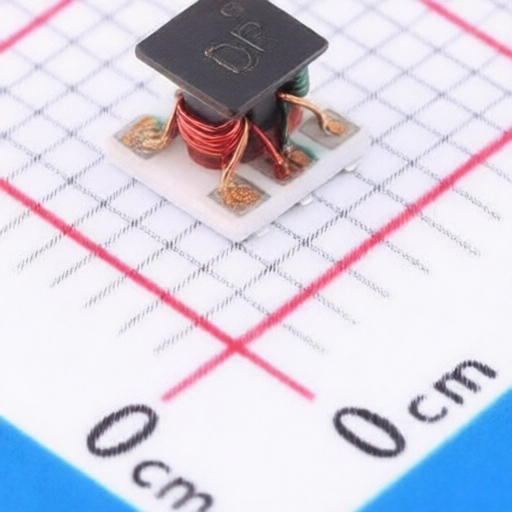

Mini-Circuits DBTC16-282LX+
Manufacturer:
Mini-Circuits
Mfr. Part #:
DBTC16-282LX+
Package:
SMD-5
Customer #:
Key Attributes:
0Ω, 16dB coupling, 5 to 2850 MHz
Description:
2.4dB 22dB 16.8dB 5MHz~2.85GHz SMD-5 RF Directional Coupler RoHS
Datasheet:
Mini-Circuits DBTC16-282LX+
Products Specifications
Category:
Manufacturer:
Package:
SMD-5
Insertion Loss:
2.4dB
Return Loss:
22dB
Coupling Factor:
16.8dB
Frequency Range:
5MHz~2.85GHz
Operating Temperature:
-40℃~+85℃
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8517799000 |
| USHTS | 8517790000 |
| TARIC | 8517790000 |
| CAHTS | 8517790000 |
| BRHTS | 85177900 |
| INHTS | 85177990 |
| MXHTS | 8517.70.99 |
