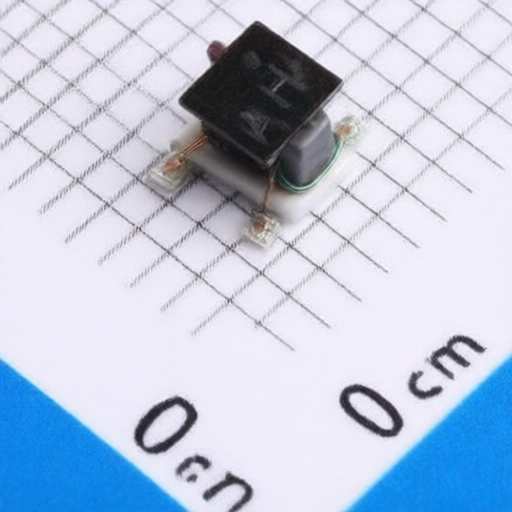

Mini-Circuits TC2-72T+
Manufacturer:
Mini-Circuits
Mfr. Part #:
TC2-72T+
Package:
SMD-5P,3.8x3.8mm
Customer #:
Key Attributes:
RF Transformer 50Ω 10 to 700 MHz
Description:
24.14dB 2.25° 10MHz~700MHz 1:2 1.8dB SMD-5P,3.8x3.8mm Balun RoHS
Datasheet:
Mini-Circuits TC2-72T+
Products Specifications
Category:
Manufacturer:
Package:
SMD-5P,3.8x3.8mm
Operating Temperature:
-40℃~+85℃
Amplitude Balance (Max):
2dB
Return Loss(Min):
24.14dB
Phase Difference:
2.25°
Frequency Range:
10MHz~700MHz
Impedance - Unbalanced/Balanced:
1:2
Insertion Loss:
1.8dB
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8504319000 |
| USHTS | 8504312000 |
| TARIC | 8504318090 |
| CAHTS | 8504310020 |
| BRHTS | 85043199 |
| INHTS | 85043100 |
| MXHTS | 8504.31.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Mini-Circuits
2431 Products
As a global leader in RF, IF, and microwave signal processing products, Mini-Circuits has easily accessible international sales offices, representatives, distributors, and manufacturing facilities that are totally committed to meeting the unique needs of our customers…from help with an applications question, to supplying large quantity production needs on short notice. Virtually anywhere on Earth, customers can count on Mini-Circuits to provide intelligent solutions to help make their project a success.
