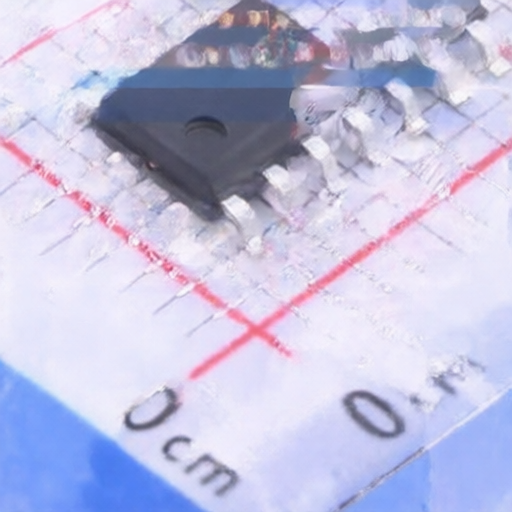

Mingda Microelectronics MD1324
Manufacturer:
Mingda Microelectronics
Asian Brands
Mfr. Part #:
MD1324
Package:
SOP-14
Customer #:
Key Attributes:
1MHz, 40uA, Rail-to-Rail I/O CMOS Operational Amplifiers
Description:
5mV 10pA 640V/ms 76dB 1MHz 4 Rail-to-Rail Input, Rail-to-Rail Output SOP-14 Amplifiers RoHS
Datasheet:
Mingda Microelectronics MD1324
Products Specifications
Manufacturer:
Package:
SOP-14
Vos - Input Offset Voltage:
5mV
Input offset current drift(Ios TC):
-
Ib - Input Bias Current:
10pA
Slew Rate:
640V/ms
Quiescent Current(Iq):
40uA
Common Mode Rejection Ratio(CMRR):
76dB
Output Current:
40mA
Operating Temperature:
-40℃~+85℃
Voltage - Supply:
2.1V~5.5V;-2.75V~-1.05V;1.05V~2.75V
Gain Bandwidth Product:
1MHz
Input Offset Voltage Drift(Vos TC):
2uV/℃
Maximum Power Supply Range (Vdd-Vss):
6V
Number of Channels:
4
Rail To Rail:
Rail-to-Rail Input, Rail-to-Rail Output
Input Offset Current(Ios):
10pA
Noise density(eN):
20nV/√Hz@10kHz
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 4000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542339000 |
| USHTS | 8542330001 |
| TARIC | 8542339000 |
| CAHTS | 8542330000 |
| BRHTS | 85423390 |
| INHTS | 85423300 |
| MXHTS | 8542.33.99 |
