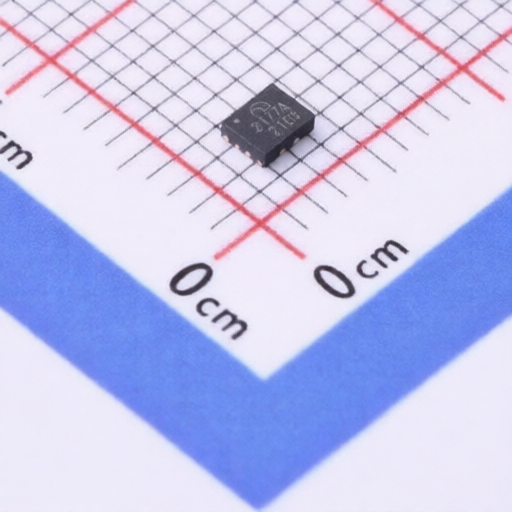

MICRONE ME2177AQF11BG
Manufacturer:
MICRONE
Asian Brands
Mfr. Part #:
ME2177AQF11BG
Package:
VQFN-11(2x2.5)
Customer #:
Key Attributes:
High Efficiency 7-A Synchronous Rectification Boost DC-DC Converter
Description:
200kHz~2.2MHz Boost Adjustable 4.5V~12.6V 7A VQFN-11(2x2.5) Voltage Regulators - DC DC Switching Regulators RoHS
Datasheet:
MICRONE ME2177AQF11BG
Products Specifications
Category:
Manufacturer:
Package:
VQFN-11(2x2.5)
Operating Temperature:
-40℃~+85℃@(TA)
Number of Outputs:
1
Frequency - Switching:
200kHz~2.2MHz
Function:
Boost
Output Type:
Adjustable
Topology:
Boost
Operating Voltage:
2.7V~12V
Switch tube (built-in/external):
Built-in
Output Voltage:
4.5V~12.6V
Output Current:
7A
Quiescent Current:
120uA
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
MICRONE
511 Products
Nanjing Micro One Electronics Inc. is a high-tech enterprise headquartered in Nanjing, specialized in the development of ASIC chips since 1999. The business covers the R&D and marketing of SAIC chips and a variety of ASIC chips—based electronic products used in information home appliance, wireless and digital communication, network technology and other areas. The main products include AC-DC、DC/DC、LDO、LED Driver、Analog-Digital mix-mode IC、Audio Amplifier、etc. Which supply the solutions for electronic equipment in the main chips and related to provide high—quality and stable power supple solutions.
