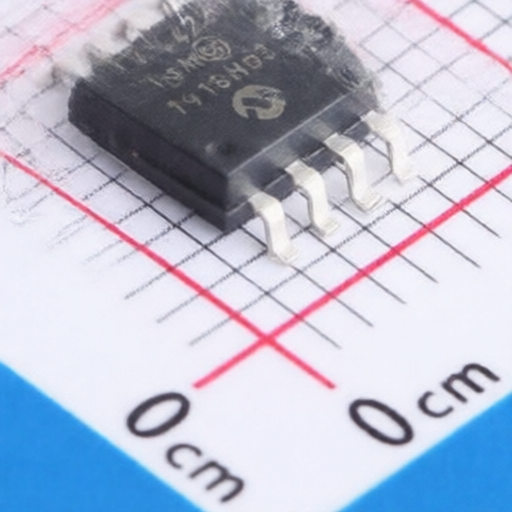

MICROCHIP TC4422ESM
Manufacturer:
MICROCHIP
Mfr. Part #:
TC4422ESM
Package:
SOIJ-8
Customer #:
Key Attributes:
9A High-Speed MOSFET Drivers
Description:
SOIJ-8 Gate Drivers RoHS
Datasheet:
MICROCHIP TC4422ESM
Products Specifications
Manufacturer:
Package:
SOIJ-8
Operating Temperature:
-40℃~+150℃@(Tj)
Peak Output Current(Source):
9A
Peak Output Current(Sink):
9A
Rise Time:
60ns
Features:
-
Fall Time:
60ns
Quiescent Current(Iq):
200uA
Load Type:
MOSFET
Input Voltage (Vin):
4.5V~18V
Driven Configuration:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 90 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
MICROCHIP
24560 Products
Microchip Technology
- Microchip Technology Inc. is a leading provider of microcontroller and analog semiconductors, providing low-risk product development, lower total system cost and faster time to market for thousands of diverse customer applications worldwide. Headquartered in Chandler, Arizona, Microchip offers outstanding technical support along with dependable delivery and quality.
