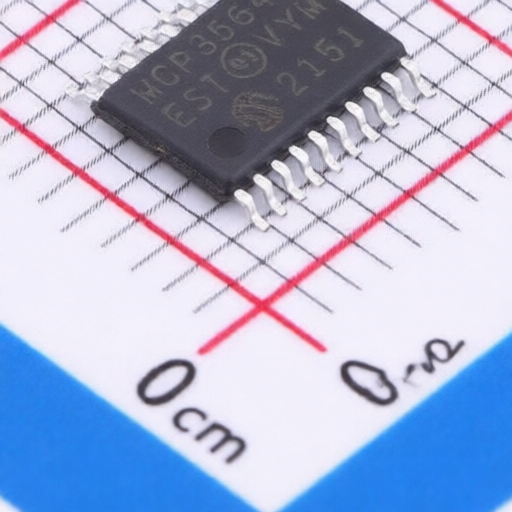

MICROCHIP MCP3564-E/ST

Name: MICROCHIP MCP3564-E/ST
Brand: MICROCHIP

Manufacturer: MICROCHIP

Mfr. Part #: MCP3564-E/ST

Package: TSSOP-20

Customer #:

Key Attributes: Two/Four/Eight-Channel, 153.6 ksps, Low Noise 24-Bit Delta-Sigma ADCs

Description: SPI 2.7V~3.6V -40℃~+125℃ 153.6kHz TSSOP-20 Analog to Digital Converters (ADC) RoHS

Datasheet: MICROCHIP MCP3564-E/ST

Products Specifications

Category:

Integrated Circuits (ICs)/Data Acquisition/Analog to Digital Converters (ADC)

Manufacturer:

MICROCHIP

Package:

TSSOP-20

Voltage Reference Drift:

500ppb/℃

Interface:

SPI

Quiescent Current (Iq):

5uA

Voltage - Supply:

2.7V~3.6V

Sampling Rate:

153.6kHz

Number of Channels:

Temperature Range:

-40℃~+125℃

Data Rate:

153.6kHz

Clock/Oscillator:

Built-in;External

Clock Frequency:

4.9152MHz;1MHz~20MHz

Voltage Reference:

External

Resolution(Bits):

S/N Ratio:

107.2dB

Temperature Sensors:

Built-in

ADC architecture:

Sigma-Delta

Programmable Gain:

Support

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	74
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	8542399000
USHTS	8542390001
TARIC	8542399000
CAHTS	8542390000
BRHTS	85423999
INHTS	85423900
MXHTS	8542.39.99
