MICROCHIP APTM100UM45DAG
Manufacturer:
MICROCHIP
Mfr. Part #:
APTM100UM45DAG
Package:

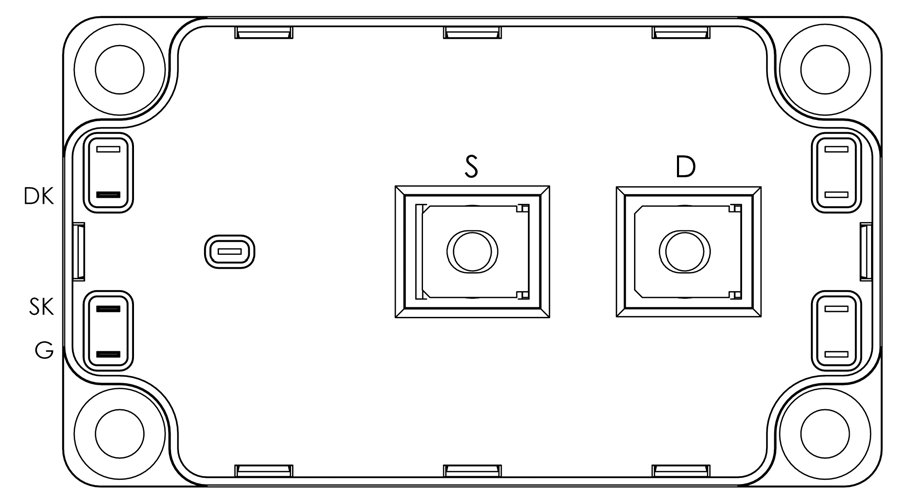

SP6
Customer #:
Key Attributes:
Single Switch, Current:215A, Voltage:1000V
Description:
1kV 215A 52mΩ@10V 5V@30mA 1 N-channel SP6 Single FETs, MOSFETs RoHS
Datasheet:
MICROCHIP APTM100UM45DAG
Products Specifications
Manufacturer:
Package:
SP6
Drain to Source Voltage:
1kV
Current - Continuous Drain(Id):
215A
Operating Temperature -:
-40℃~+150℃
RDS(on):
52mΩ@10V
Gate Threshold Voltage (Vgs(th)):
5V@30mA
Reverse Transfer Capacitance (Crss@Vds):
1.3nF
Number:
1 N-channel
Output Capacitance(Coss):
7.6nF
Input Capacitance(Ciss):
42.7nF
Pd - Power Dissipation:
-
Gate Charge(Qg):
1.602uC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
