MICROCHIP MSCM20XM10T3XG
Manufacturer:
MICROCHIP
Mfr. Part #:
MSCM20XM10T3XG
Package:

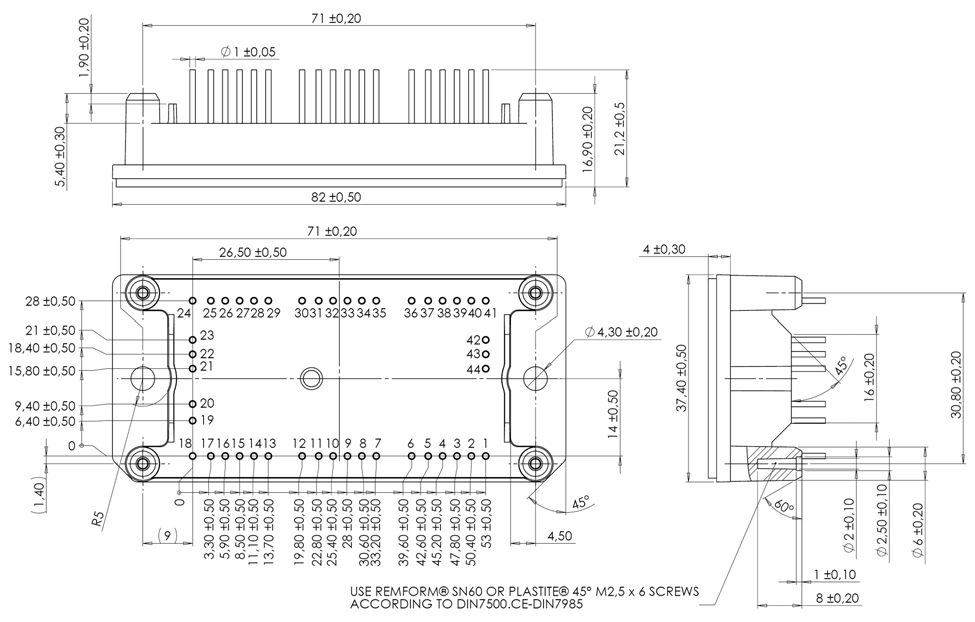

SP3X
Customer #:
Description:
200V 108A 9.7mΩ@10V 5V@250uA 6 N-Channel 341W SP3X Single FETs, MOSFETs RoHS
Datasheet:
MICROCHIP MSCM20XM10T3XG
Products Specifications
Manufacturer:
Package:
SP3X
Configuration:
-
Drain to Source Voltage:
200V
Current - Continuous Drain(Id):
108A
Operating Temperature -:
-40℃~+175℃
RDS(on):
9.7mΩ@10V
Gate Threshold Voltage (Vgs(th)):
5V@250uA
Reverse Transfer Capacitance (Crss@Vds):
160pF
Number:
6 N-Channel
Output Capacitance(Coss):
810pF
Pd - Power Dissipation:
341W
Input Capacitance(Ciss):
10.7nF
Gate Charge(Qg):
161nC@10V
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
